5-28 Disassembly, Assembly, and Adjustments Rev. A
Sub-assembly L-(2)

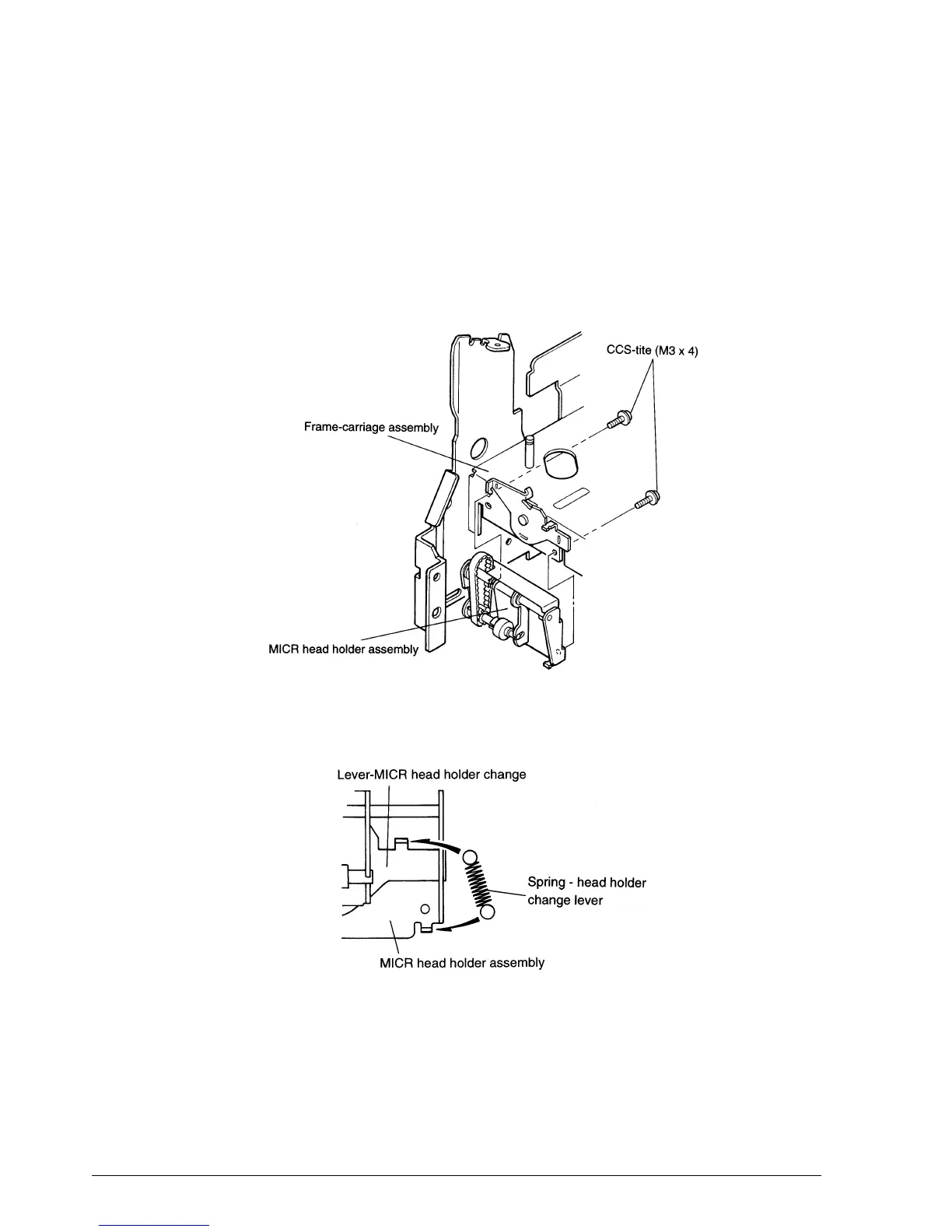

2. As shown below, attach the MICR head holder assembly to the frame-carriage assembly, and
secure it with the two screws.
✔
Checkpoints
Make sure the two dowels of the MICR head holder assembly are inserted in the two holes in
the frame carriage assembly.
3. Attach the spring-head holder change lever as shown below.
