Epson TM-U950 Technical Manual

Rev. A Disassembly, Assembly, and Adjustments 5-29
TM-U950/U950P Technical Manual

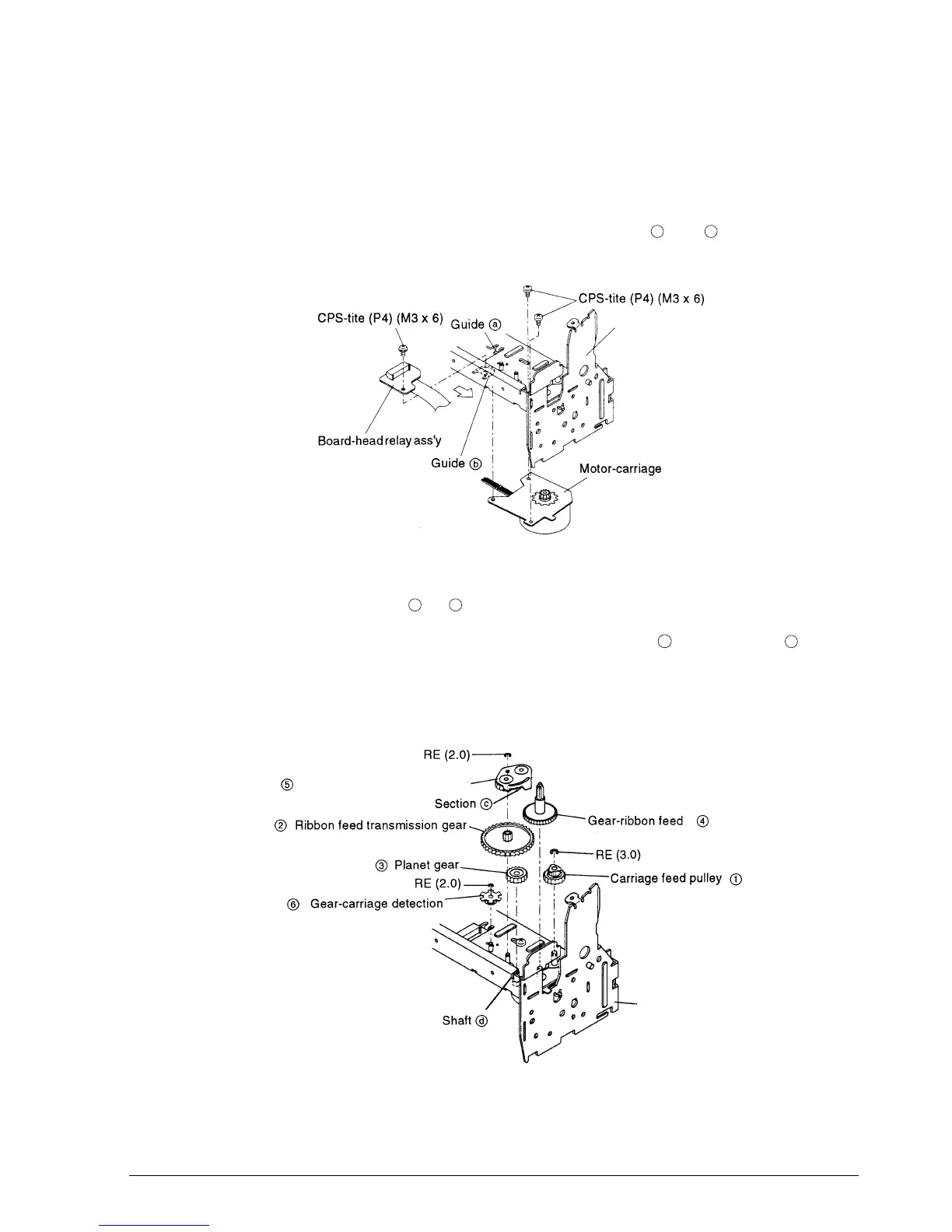

Sub-assembly L-(2)
4. Attach the motor-carriage to the frame-carriage assembly with the screws.
5. Slide the board-head relay assembly into position along guides and , and fasten it with
the screw.
6.* Mount the gears in the order to in the illustration, and fasten them with the REs.
7. Attach the lever-ribbon feed planet assembly so that the section encloses shaft .
[Adjustment] Backlash adjustment of carriage feed pulley and carriage motor (see Adjustment B on
page 5-54).
a
b
Frame-carriage assembly
1 6
c
d
Frame-carriage assembly
Lever-ribbon feed planet
assembly
CONFIDENTIAL

Epson TM-U950 Specifications

General

Print speed	18.6 ips
Character size	1.3 x 3.1 mm
Print technology	Dot matrix
Paper dimensions	210 x 297 mm
Dimensions (WxDxH)	251 x 298 x 194.5 mm
Electromagnetic compatibility	VCCI, FCC, CE
Safety	UL, CSA
Country of origin	China
Mean time between failures (MTBF)	180000 h
Serial interface	Yes
Standard interfaces	RS-232C
Weight (imperial)	12.3 lbs
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2250 mm
Quantity per pallet	24 pc(s)
Quantity per pallet (UK)	36 pc(s)
Quantity per pallet layer	4 pc(s)
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	6 pc(s)
Package depth	425 mm
Package width	360 mm
Package height	330 mm
Package weight	7196 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	298 mm
Width	186 mm
Height	195 mm
