Epson TM-U950 Technical Manual

5-34 Disassembly, Assembly, and Adjustments Rev. A
Sub-assembly L-(2)

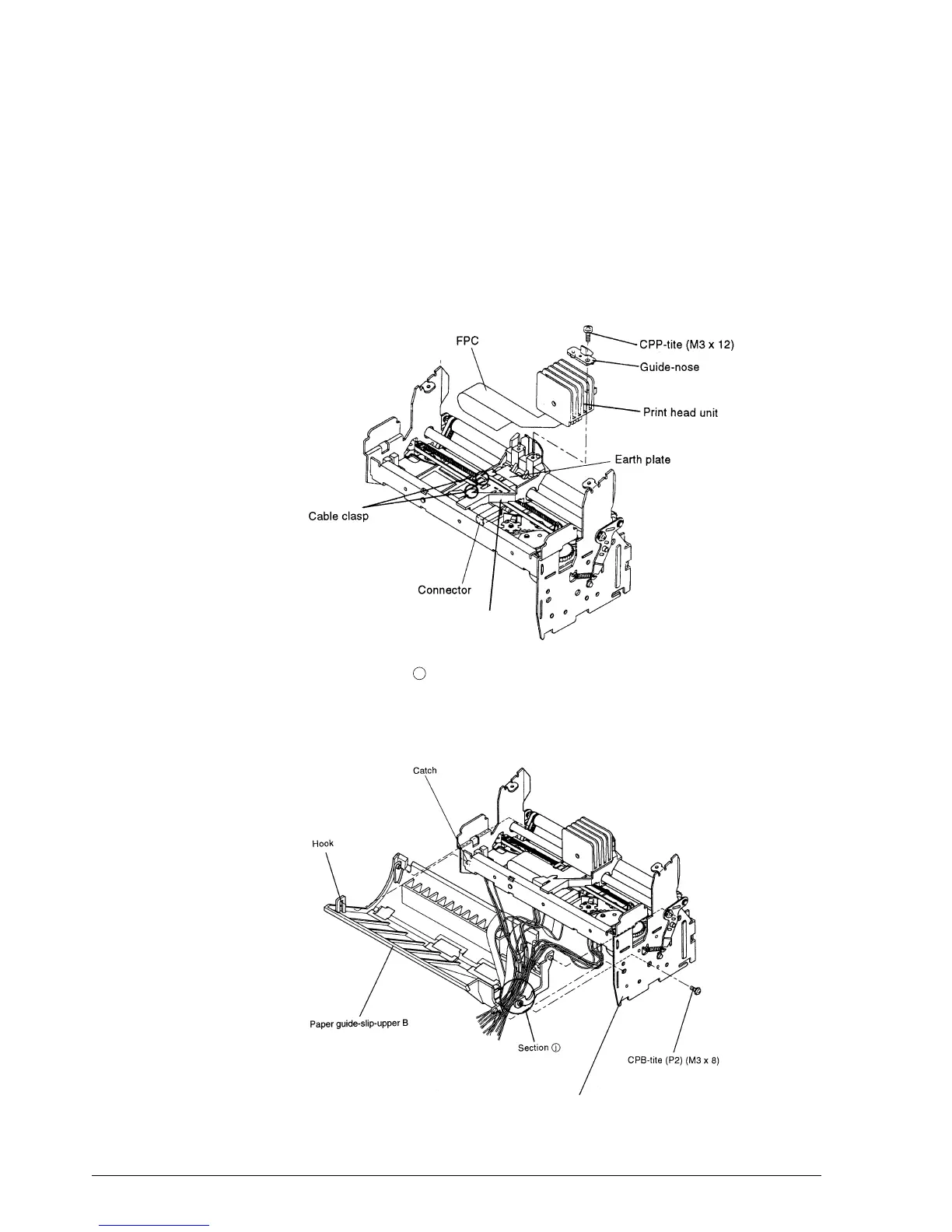

26. Engage the FPC on the cable clasp. Mount the guide-nose onto the print head unit, and then
attach them and tighten the screw.
27. Plug the FPC into the board-head relay assembly.
✔
Checkpoints
Verify that the FPC is not deformed.
Verify that the print head unit is in contact with the ground plate.
28. Assemble all cables at section .
29. Mount the paper guide-slip-upper B on the frame-carriage assembly so that the three dowels
match the respective dowel holes, and the hook is engaged in the catch. Then tighten the
screw.
Carriage-head assembly
j
Frame-carriage assembly
