Epson TM-U950 Technical Manual

Rev. A Disassembly, Assembly, and Adjustments 5-33
TM-U950/U950P Technical Manual
Sub-assembly L-(2)

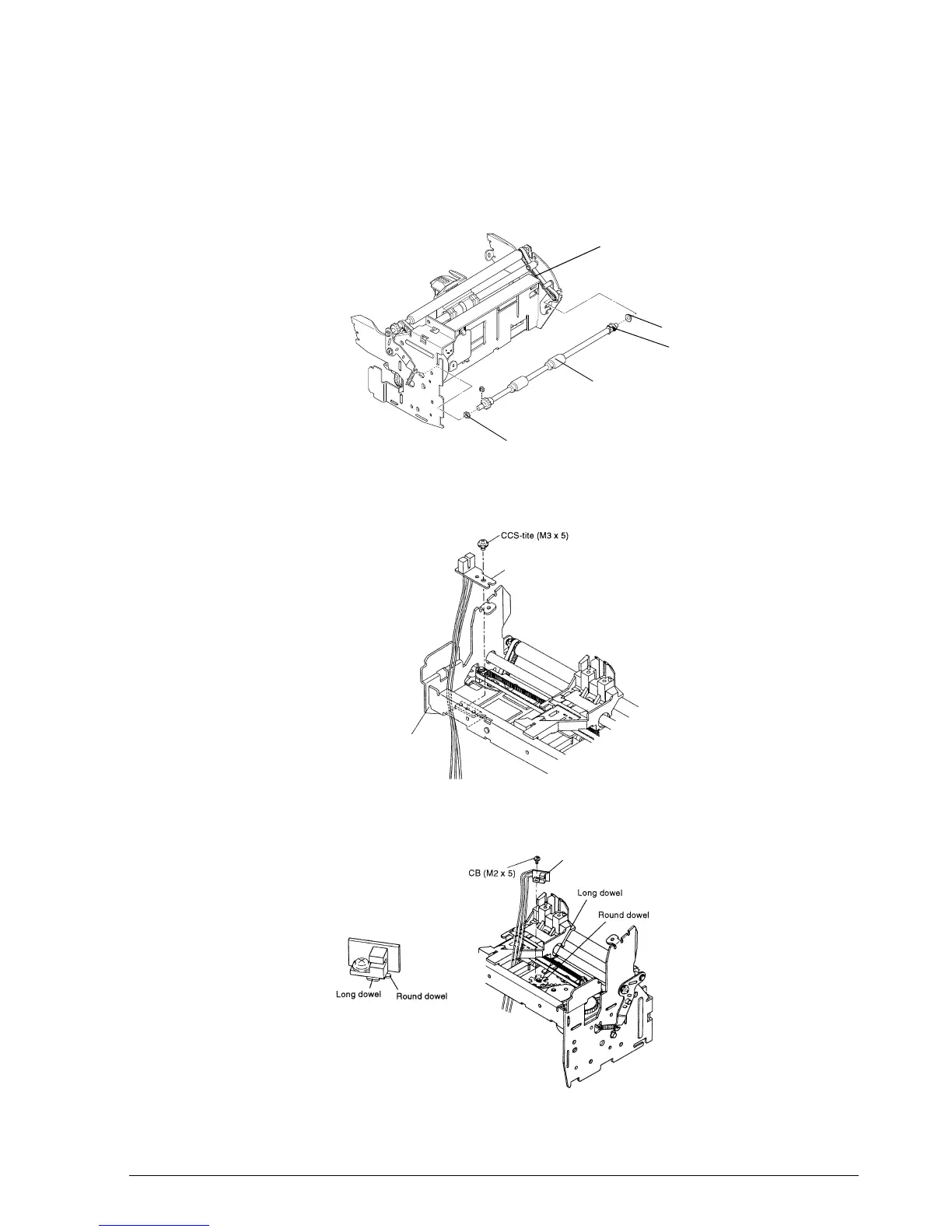

23. Engage the belt-slip paper feed on the pulley-carriage transmission. Mount the print shaft
holders and roller-sub slip paper hold assembly, and fasten with the RE.
24. Pass the wires through the frame-carriage assembly, attach the detector-H.P. sub-assembly
to the frame, and tighten the screw.
25. Mount the detector-carriage sub assembly so that it is flush with the round dowel and long
dowel, as shown in the illustration. Then tighten the screw.
Belt-slip paper feed
Print shaft holder
Pulley-carriage transmission
Roller-sub slip paper hold assembly
Print shaft holder
Detector-H.P sub-assembly
Frame-carriage assembly
Detector-carriage sub-assembly
