5-54 Disassembly, Assembly, and Adjustments Rev. A

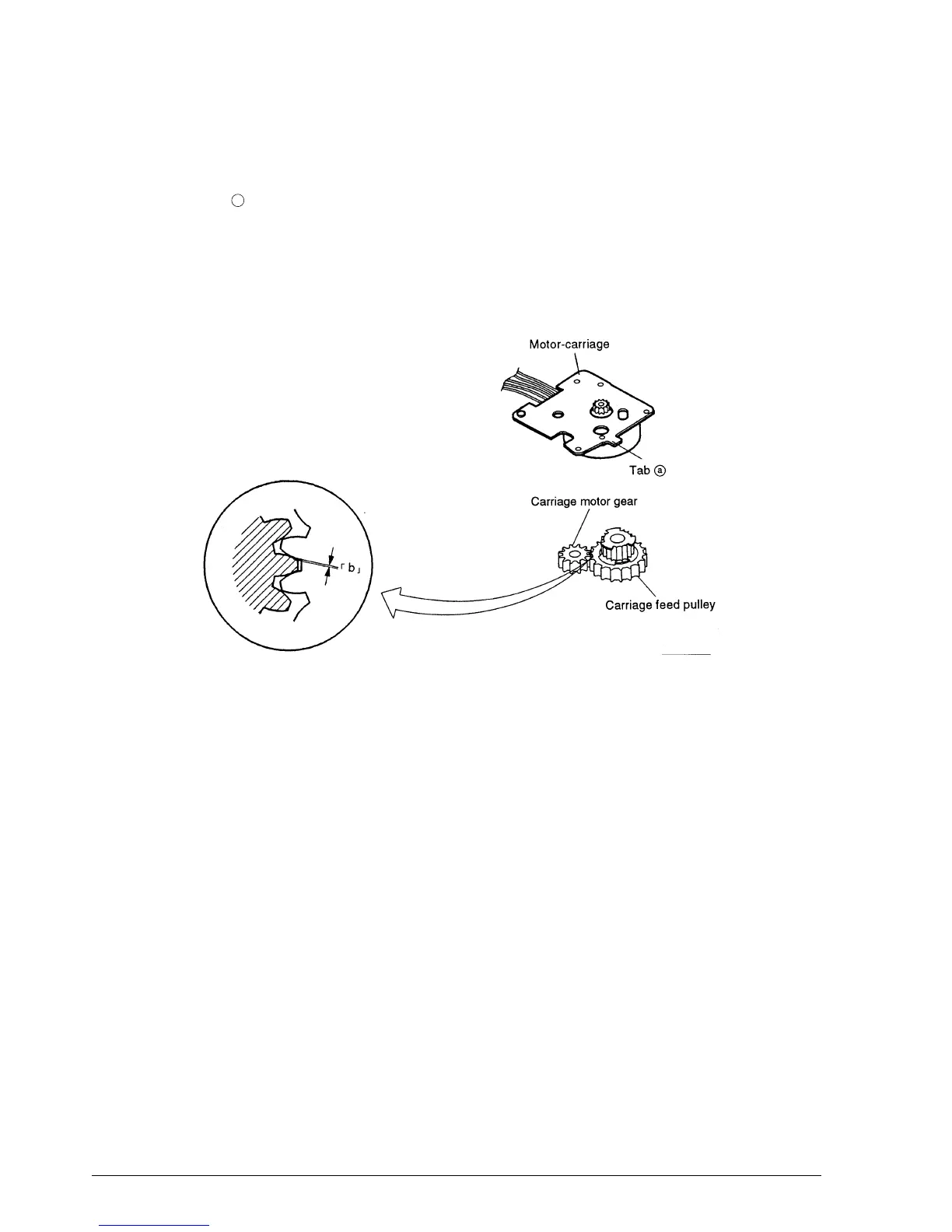

Adjustment B: Carriage Motor Gear and Carriage Feed Pulley Backlash
1. Loosen the fastening screw of the motor-carriage.
2. Move tab of the motor-carriage to adjust the backlash.
3. Tighten the fastening screw of the motor-carriage.
✔
Checkpoint
Nominal value: b= 0.1 ± 0.05 mm (.0039 ± .0020”).
a
