5-80 Disassembly, Assembly, and Adjustments Rev. A

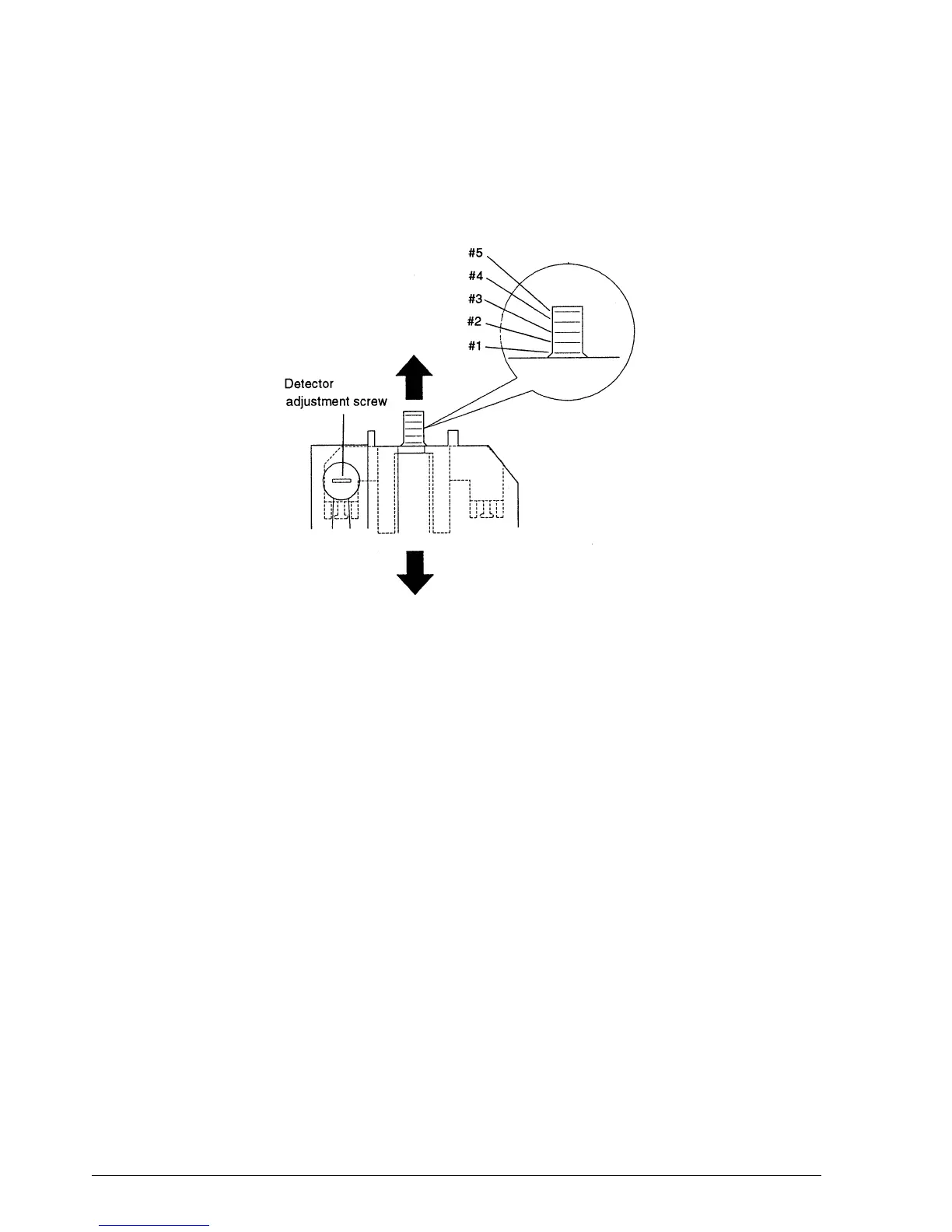

3. Loosen the detector adjustment screws on both receipt and journal sides, and place the
selected line of the N.E. detector-R and -J assembly so that the appropriate adjustment value
is obtained.
4. After the adjustment, check that the lever-N.E. detector moves smoothly.
