Epson TM-U950 Technical Manual

Rev. A Handling and Maintenance 3-3
TM-U950/U950P Technical Manual
4. Insert the tip of the paper from each roll into the corresponding paper inlet. The paper will
automatically be detected and fed into the printer.
5. Tear off the receipt paper on the paper cutter. If the paper was not fed far enough, press the
RECEIPT FEED button to feed additional paper.
6. Press the JOURNAL/SLIP FEED button to feed an additional 30 cm (a foot) or so of journal
paper.
7. Insert the tip of the journal paper into the groove on the take-up spool and rotate the spool
two or three times to secure the paper.

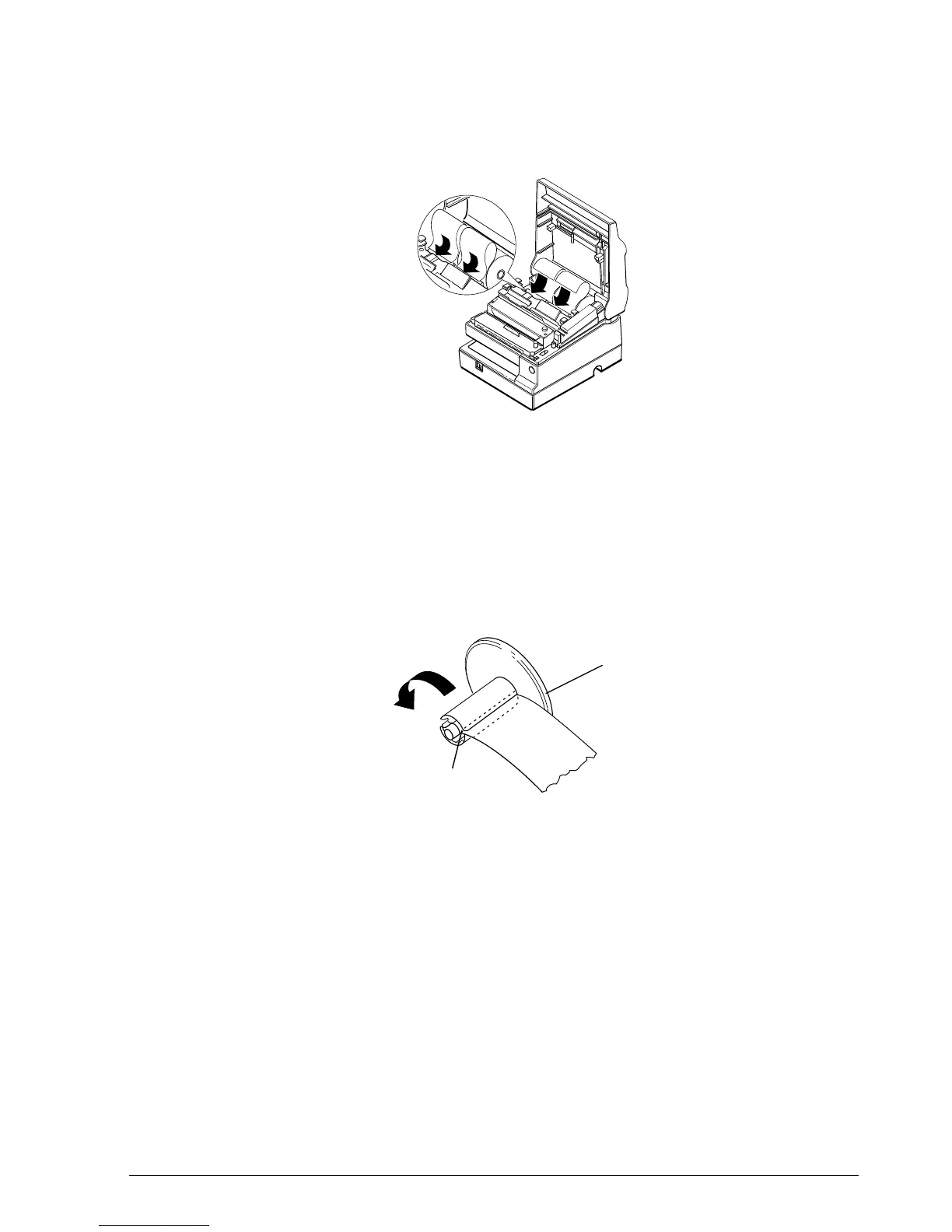

Figure 3-4. Inserting Paper into the Paper Inlet
Figure 3-5.Inserting the Paper into the Spool
Take-up spool
Groove
CONFIDENTIAL

Epson TM-U950 Specifications

General

Print speed	18.6 ips
Character size	1.3 x 3.1 mm
Print technology	Dot matrix
Paper dimensions	210 x 297 mm
Dimensions (WxDxH)	251 x 298 x 194.5 mm
Electromagnetic compatibility	VCCI, FCC, CE
Safety	UL, CSA
Country of origin	China
Mean time between failures (MTBF)	180000 h
Serial interface	Yes
Standard interfaces	RS-232C
Weight (imperial)	12.3 lbs
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2250 mm
Quantity per pallet	24 pc(s)
Quantity per pallet (UK)	36 pc(s)
Quantity per pallet layer	4 pc(s)
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	6 pc(s)
Package depth	425 mm
Package width	360 mm
Package height	330 mm
Package weight	7196 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	298 mm
Width	186 mm
Height	195 mm
