Essemtec Paraquda - Optimize the Process; Check the Setup

Operating of the Machine
Paraquda Startup & Safety © Essemtec AG
4-55
0000003/11 / November 4, 2014

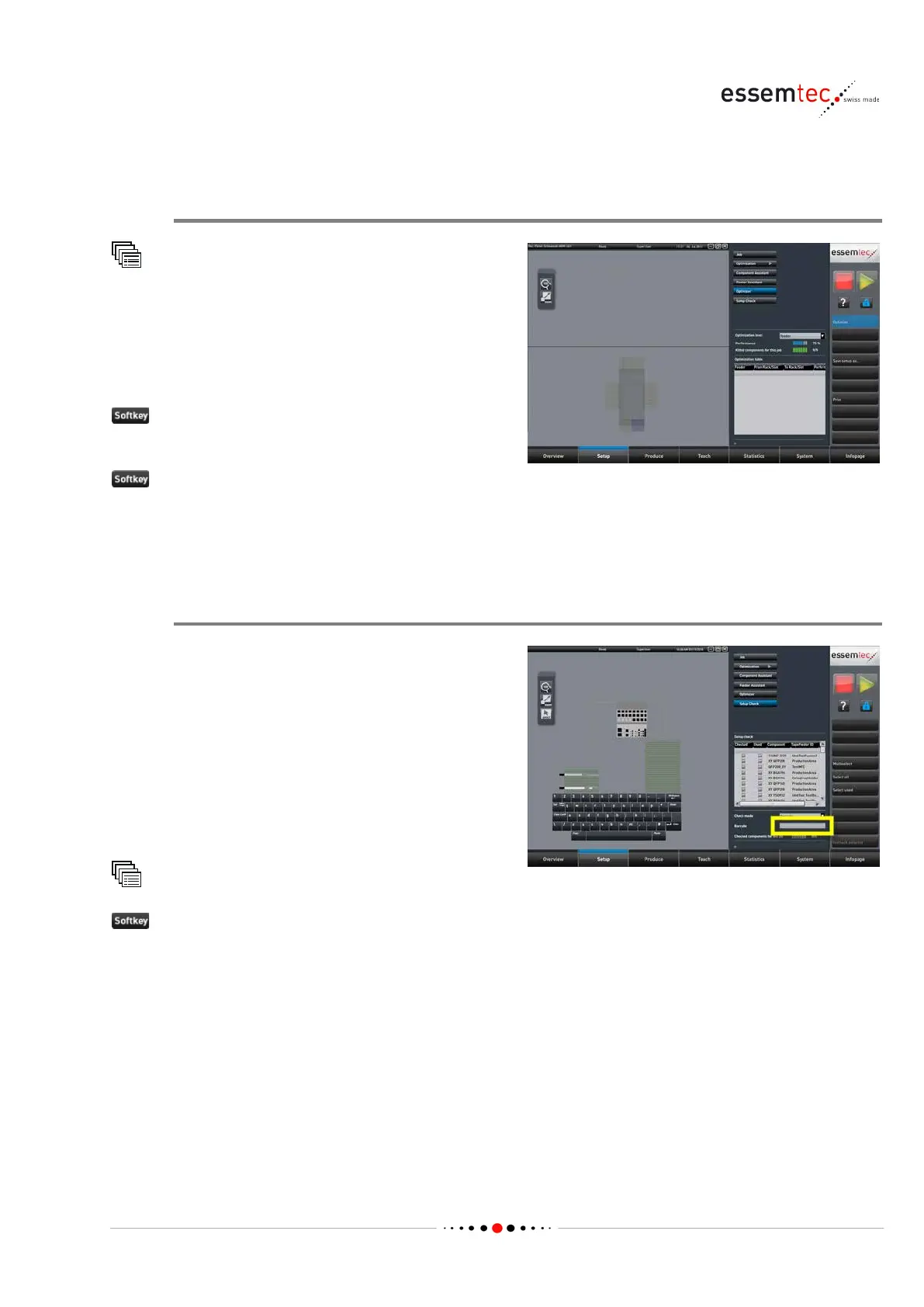

4.5.5 Optimize the Process
Optimizer
Setup
Optimizer
If already kitted feeders are placed on the
machine randomly or from a previous job, the
optimizer assists to find the optimized position
of
each feeder or each component (depending
on the selected
Optimization level).
Optimize
Move the feeders or components
Correction done
4.5.6 Check the Setup
Make the Machine ready for Production
After the components are physically present on
the feeder lanes, the setup check can be done.
With the setup check the barcode of the feeder
lane and the barcode of the component (on reel)
is read. This real assignment of feeder lan
e and
component is compared with the virtual or
logical assignment (stored as 'kitted' in the
machine) to ensure the reality is equivalent to
the virtuality. This guarantees the placing of the
correct components on the PCB.
Setup
Setup Check
Parameter
text field Barcode and enter the
barcode of the feeder lane and the barcode of
the component on the tape, or use the barcode
reader to read both barcodes.
If the comparison is successful the component
will get the checked status.
