Essemtec Paraquda - Machine Coordinate System

Equipment Overview
Paraquda Startup & Safety © Essemtec AG
2-7
0000003/11 / November 4, 2014

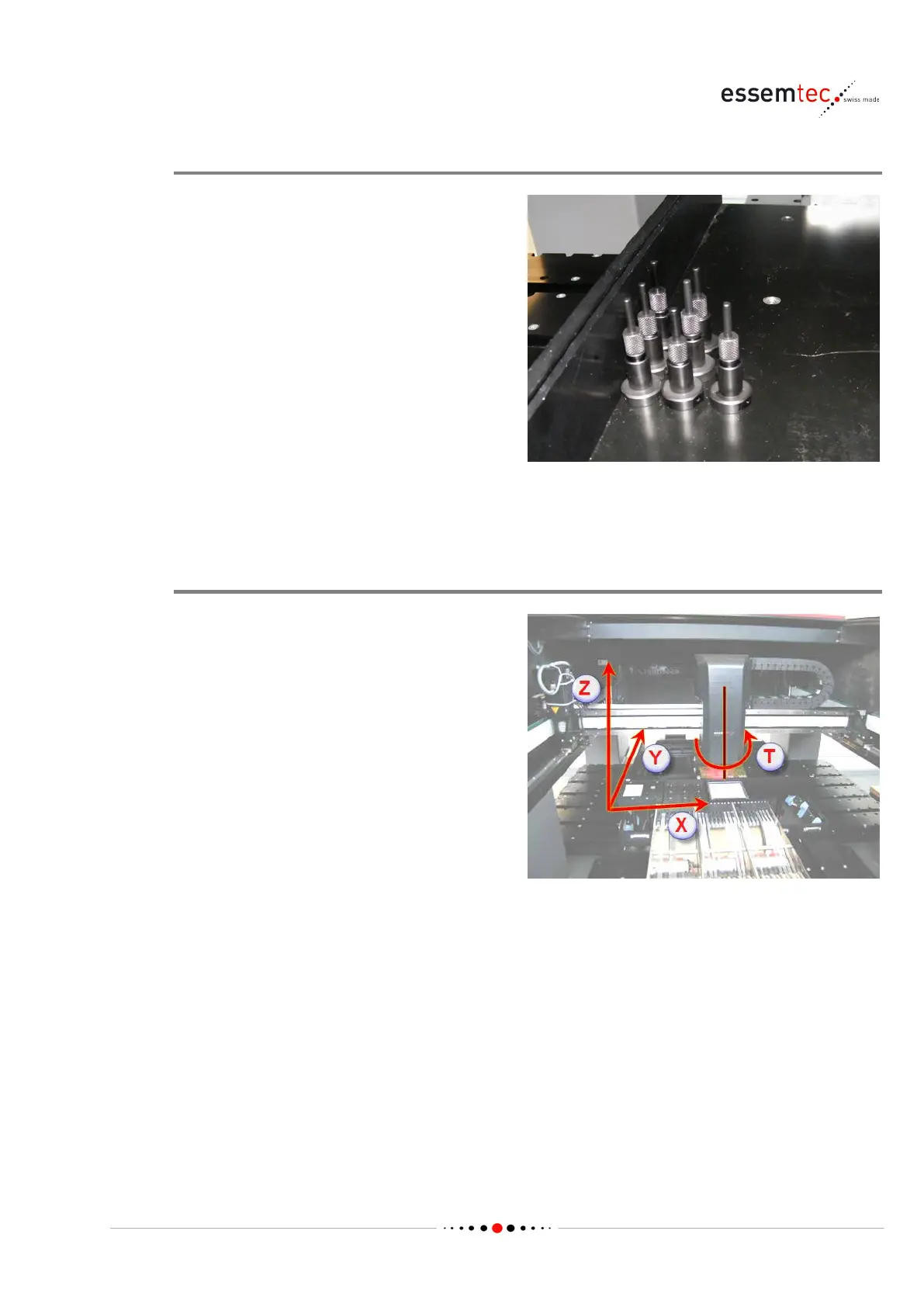

Support Pins
Support Pins are available either as single fix
type (without conveyor) or single move type
(movable in Z for conveyor system).
They are mainly used
to support large boards to
prevent bending while placing the components.
2.3.5 Machine Coordinate System
X, Y, Z and Theta axes
X axis (X)
Horizontal axis pointing from left to right, seen
f
rom the front of the machine.
Point of origin of the X axis is in the leftmost
position of the production area.
An ascending X value means head moving from
left to right, seen from the front of the machine.
Y axis (Y)
Horizontal axis pointing from the f
ront of the
machine towards the rear of the machine.
Point of origin of the Y axis is the front position
of the production area.
An ascending Y value means head moving from
front to rear of the machine.
Z axis (Z)
Vertical axis pointing from the bottom of the machine towards the top of the machine.
Point of origin of the Z axis (Z zero height) is the surface of the calib station.
An ascending Z value means axis moving from bottom to top.
Theta axis (T)
Rotational axis, rotation around Z axis.
