8 Opens an additional toolbar with slider control for light settings (brightness / contrast)of
top and bottom camera. For the top camera, 3 different light settings can be predefined for
a fast switching during inspections. These light settings are just for the manual viewing and
have no influence to the recipe. Save the settings by pressing the 1, 2 or 3 button for 2 sec.
9 Drags the camera window inside the graphical section.
10 Moves the head with defined step width (button 14) one step to the left .
11 Moves the head with defined step width (button 14) one step upwards.
12 Moves the head with defined step width (button 14) one step downwards.
13 Moves the head with defined step width (button 14) one step to the right.
14 Toggles through various step width [mm].
15 Changes proportional the size of camera window by dragging.

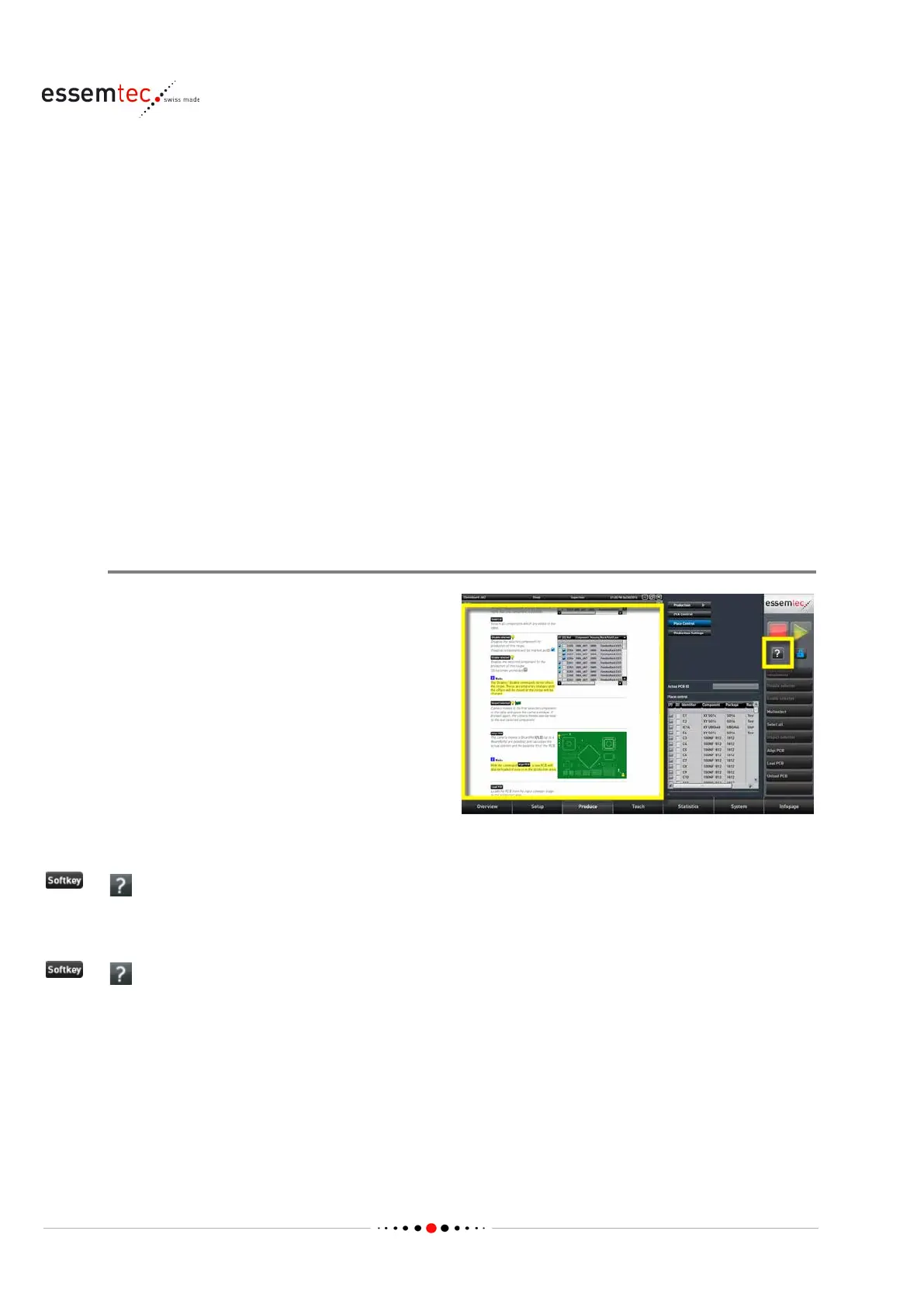

3.2.6 Online Help
Context Info
Every screen (Main Task / Process / Process Step)
has its own Context Info
. It is divided into 4
sections:
• General: purpose of screen
• Parameters & Softkeys: purpose of
parameters and softkeys on screen
• Use Case: one or more use cases step by
step
• Next Step (optional): next logical steps
• Quick Access: fast access to toolbar function
description
to activate Context Info
The Context Info is displayed within the
graphical section.
press again to deactivate Context Info
(toggle button)
