Operating of the Machine
Paraquda Startup & Safety © Essemtec AG
4-27
0000003/11 / November 4, 2014

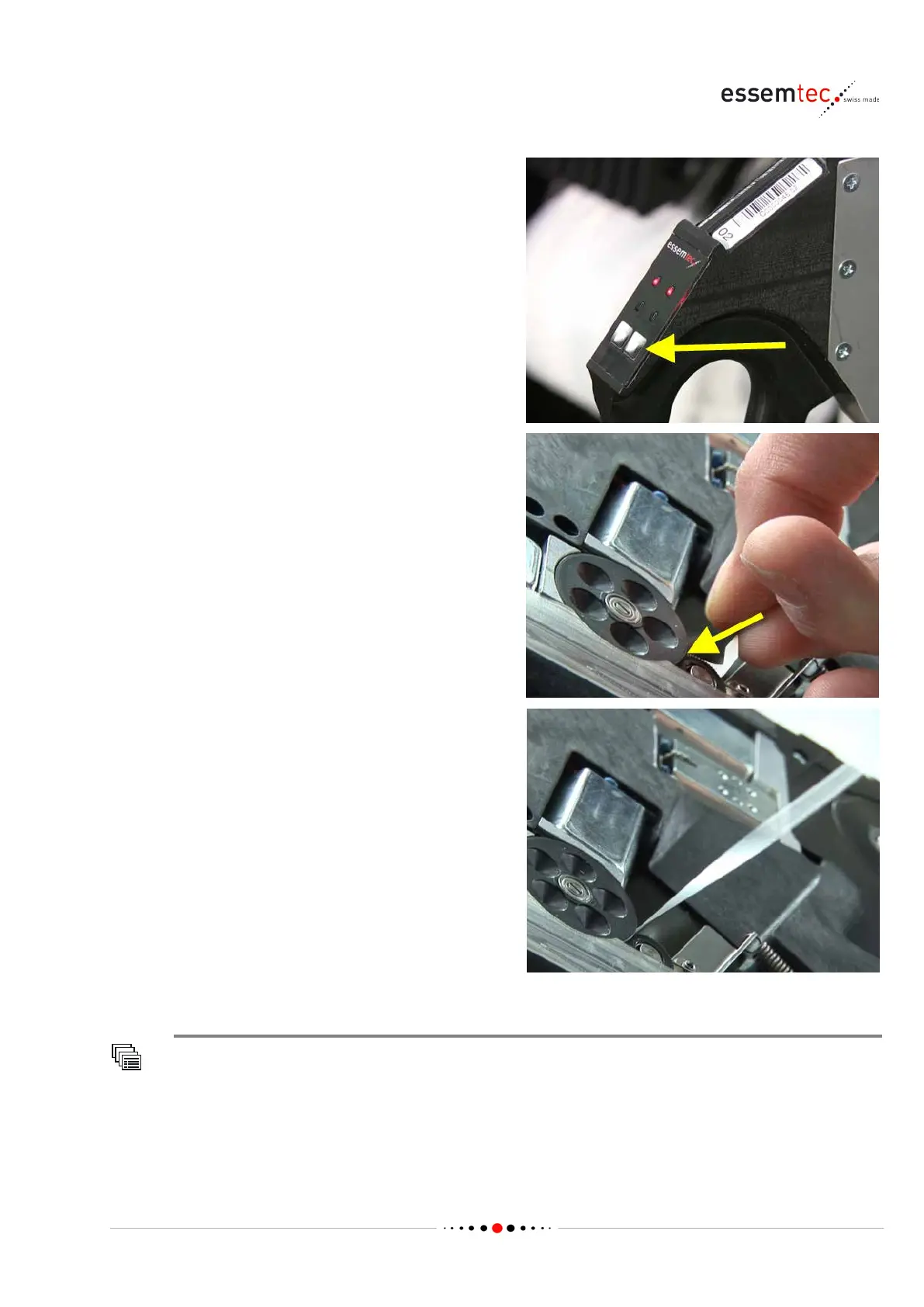

Press the feed motion button once. The cover
tape transport roller will rotate (pulsed).
sert the cover tape between the cover tape
transport rollers (see picture).
The cover tape will be pulled tight
automatically.
Check correct Function
Produce
Pick Control
Check the correct feeding of the component, it must be presented correctly, ready for picking (1).
Check also for correct orientation of the component.
Check the correct feeding of tape and cover tape.
