ER1 User Guide A-15
Assembling Your Unassembled ER1

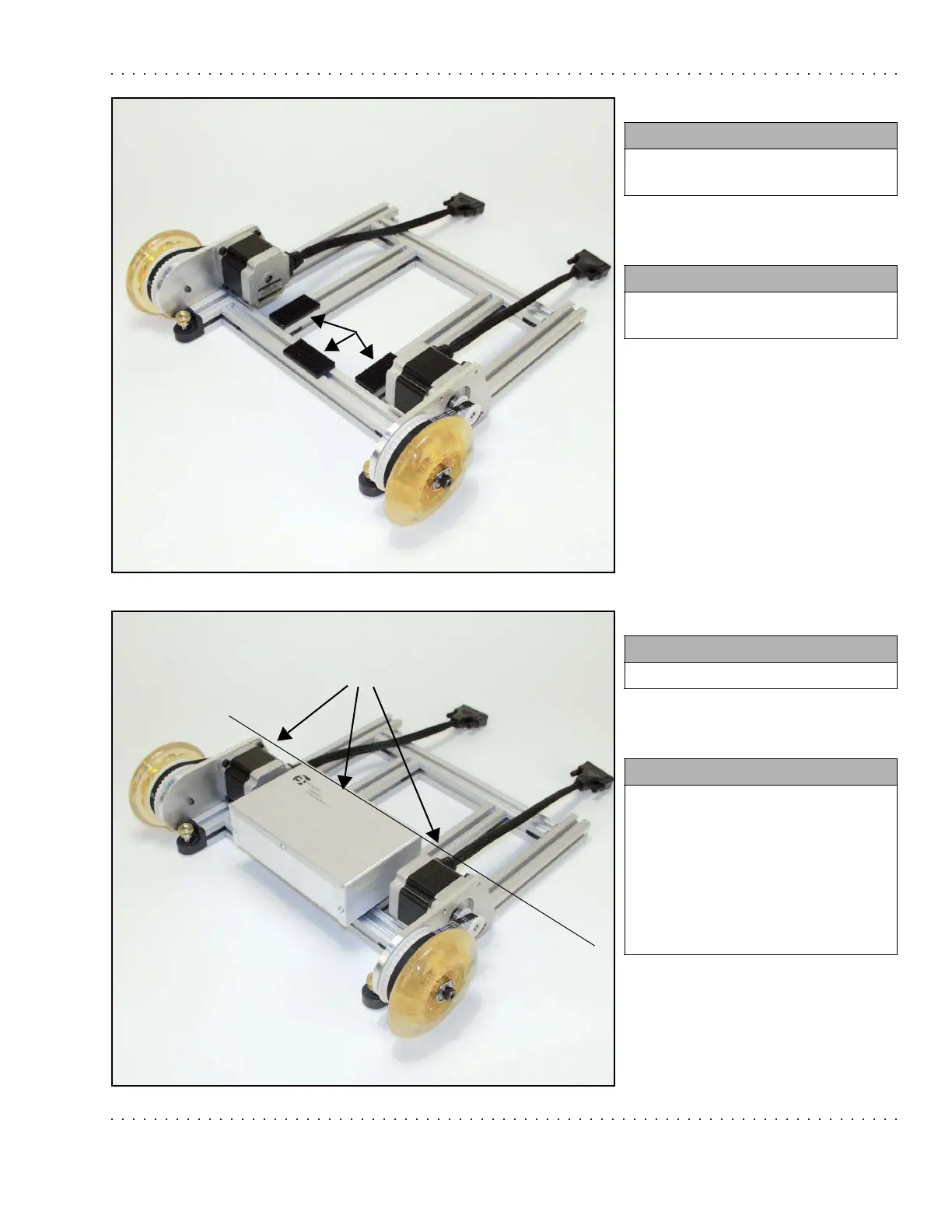

Step 8.
Step 9.
You need:
• 3 1x2 mounting plates with
mushroom headed fastner tape
Instructions:
• Attach the mounting plates as
shown.
You need:
• 1 Robot Control Module (RCM)
Instructions:
• Use the mounting plates on the
assembly and the mushroom
headed fastner to attach the RCM.
• The top of the RCM should be
level with the tops of the motors.
• Make sure the RCM is secure by
pushing down firmly.
Tops
