ER1 User Guide A-17
Assembling Your Unassembled ER1

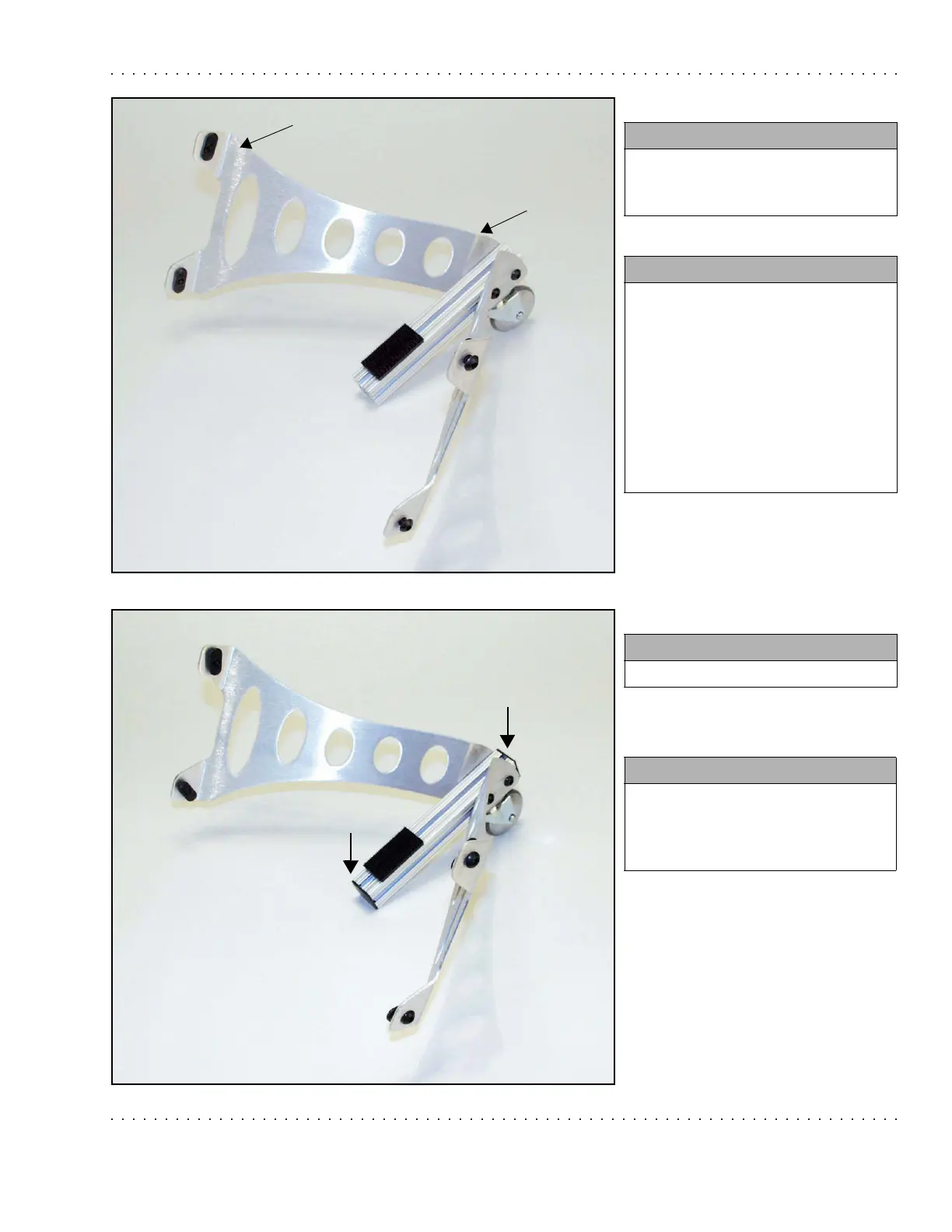

Step 12.
Step 13.
You need:
• 2 struts, one right, one left, each
with 4 Allen screws, 2 one-holed
and 1 two-holed T-nuts.
Instructions:
• Slide the T-nut on the bottom of
the strut down the track of the
XBeam flush with the end of the
beam as shown. Note that the
struts are mirror images of each
other. Position them as shown.
• Tighten the screws.
• Repeat for the other side, making
sure to position as shown.
You need:
• 2 endcaps
Instructions:
• Place endcaps on both ends of the
7'' beam. You may need to tap
these with a small hammer to get
them to seat properly.
