EXFO Power Blazer - Page 707

Test Functions
Power Blazer 697
Pointer Adjustment

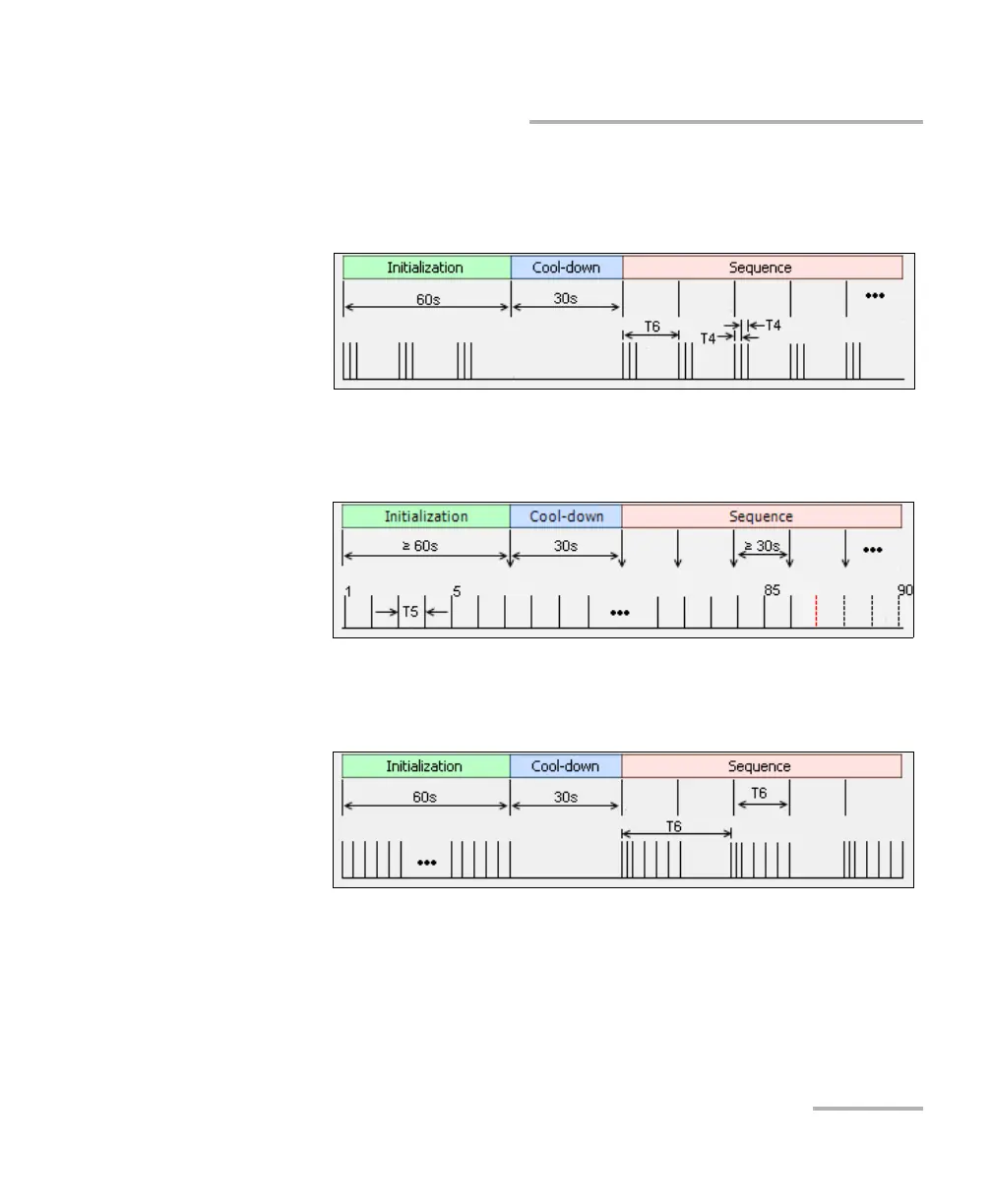

 T4 (ms) represents the interval between back to back pointer
events in periodic pointer sequence.
Example of Burst pointer adjustment sequence.
 T5 (s) represents the interval between successions of pointer
events in a Periodic pointer sequence.
Example of Periodic 87-3 with Cancel sequence.
 T6 (s) represents the interval between successions of pointer
events.
Example of Phase transient sequence.
