Selecting and Starting a Test
Power Blazer 101
Sync Test Applications
Sync Test Applications
To select, configure, and start a Sync test:
1. From the test menu, tap Setup.
2. From the Test Applications tab, under Sync, tap a test icon.
3. From the Test Configurator tab configure the interface structure and
its parameters.
3a. Tap the Modify Structure button to set the basic structure of the
test such as the interface/rate, connector, etc. (refer to Modify
Structure Button on page 119).
3b. Tap the interface block to configure the interface parameters
(refer to page 107; no configuration is available with Wander
10 MHz, 2 MHz, and 1PPS rates). Ensure that the link is up and the
power level (when supported) is present in the status bar before
proceeding to the next step (refer to Status Bar on page 32).
3c. Tap the test block to configure the specific test settings (refer to
page 110).
3d. For Wander test application, tap the external reference block to
configure the external reference signal (refer to External
Reference on page 206).

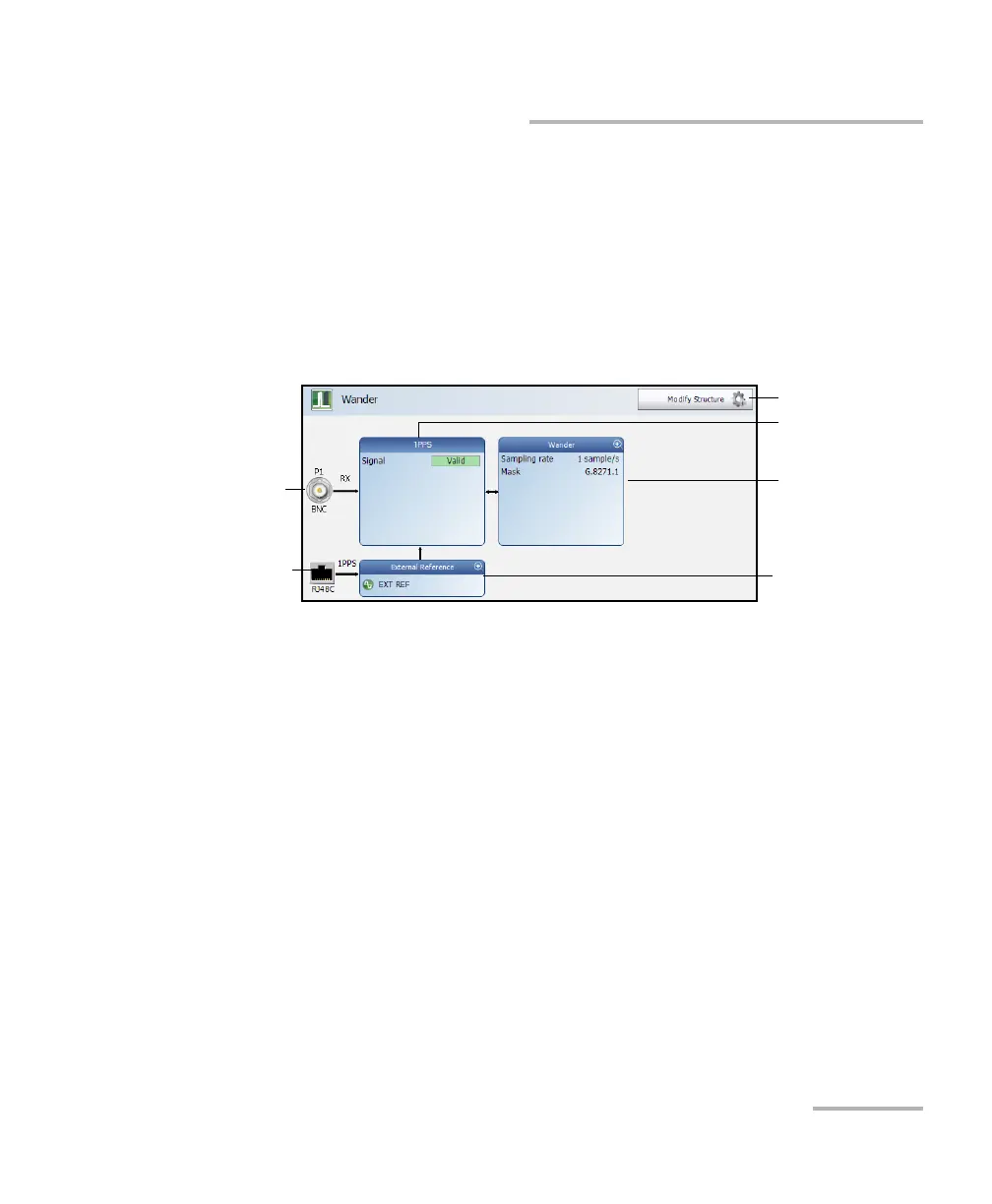

Modify Structure
Te st B lo c k
Interface Block
Physical
Interface Port
Physical External
Reference Port
External Reference
Block
To Next Page
