Selecting and Starting a Test
Power Blazer 105
Wireless Test Application
Wireless Test Application
To select, configure, and start a Wireless test:
1. From the test menu, tap Setup.
2. From the Test Applications tab, under Wireless, tap a test icon.
3. From the Test Configurator tab configure the interface structure and
its parameters.
3a. Tap the Modify Structure button to set the basic structure of the
test such as the interface/rate, connector, etc. (refer to Modify
Structure Button on page 119).
3b. Tap the interface block to configure the interface parameters
(refer to page 223). For Dual Port topology, there is an interface
block for each port. Ensure that the power level is present in the
status bar before proceeding to the next step (refer to Status Bar
on page 32).
3c. For eCPRI BERT framed test, tap the protocol block to configure
the frame structure and its parameters (refer to page 111). For
Dual Port topology, there is a protocol block for each port.

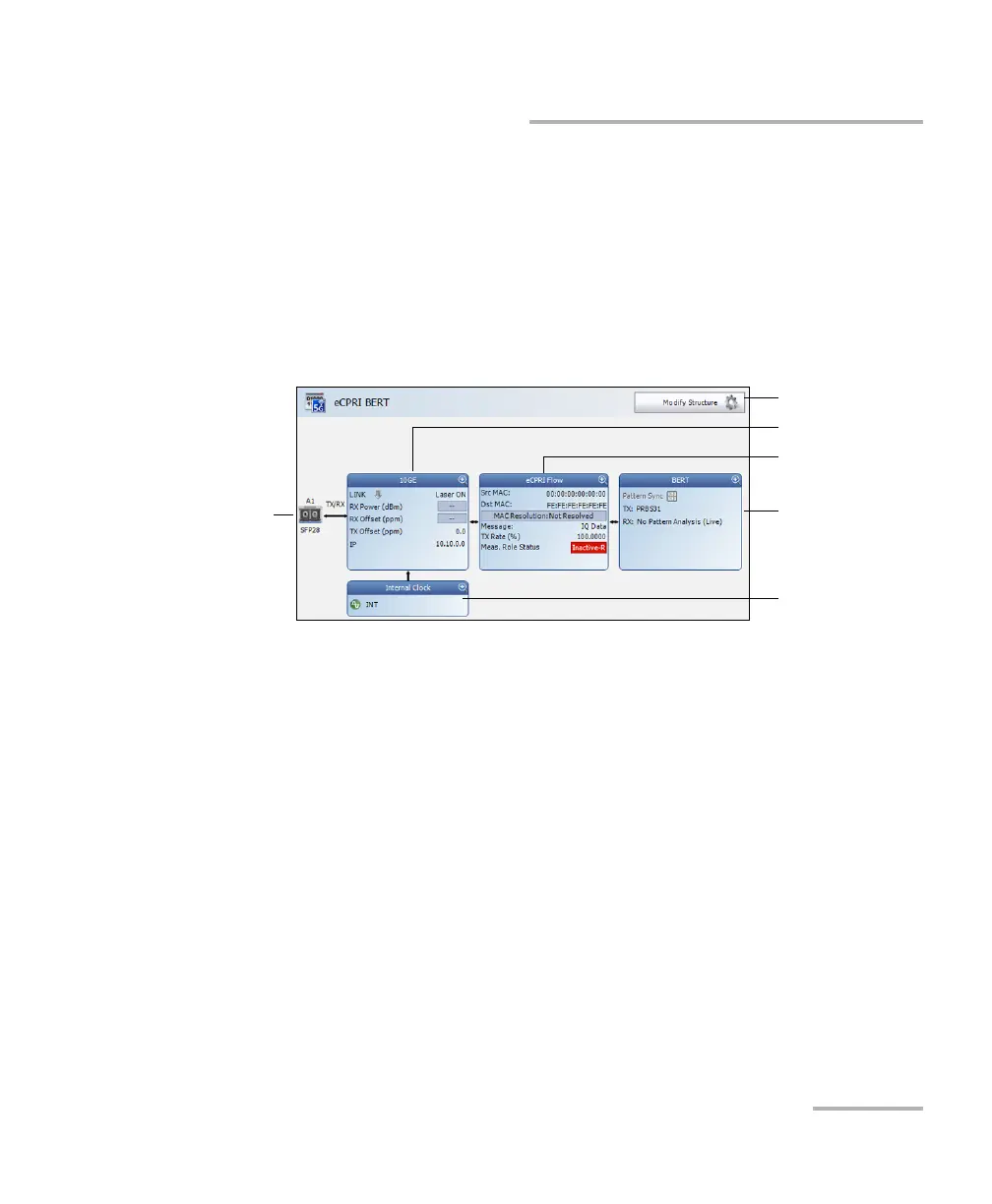

Modify Structure
Te st B lo c k
Interface Block
Physical
Interface Port
Clock Block
Protocol Block
