175
FIS Viewer

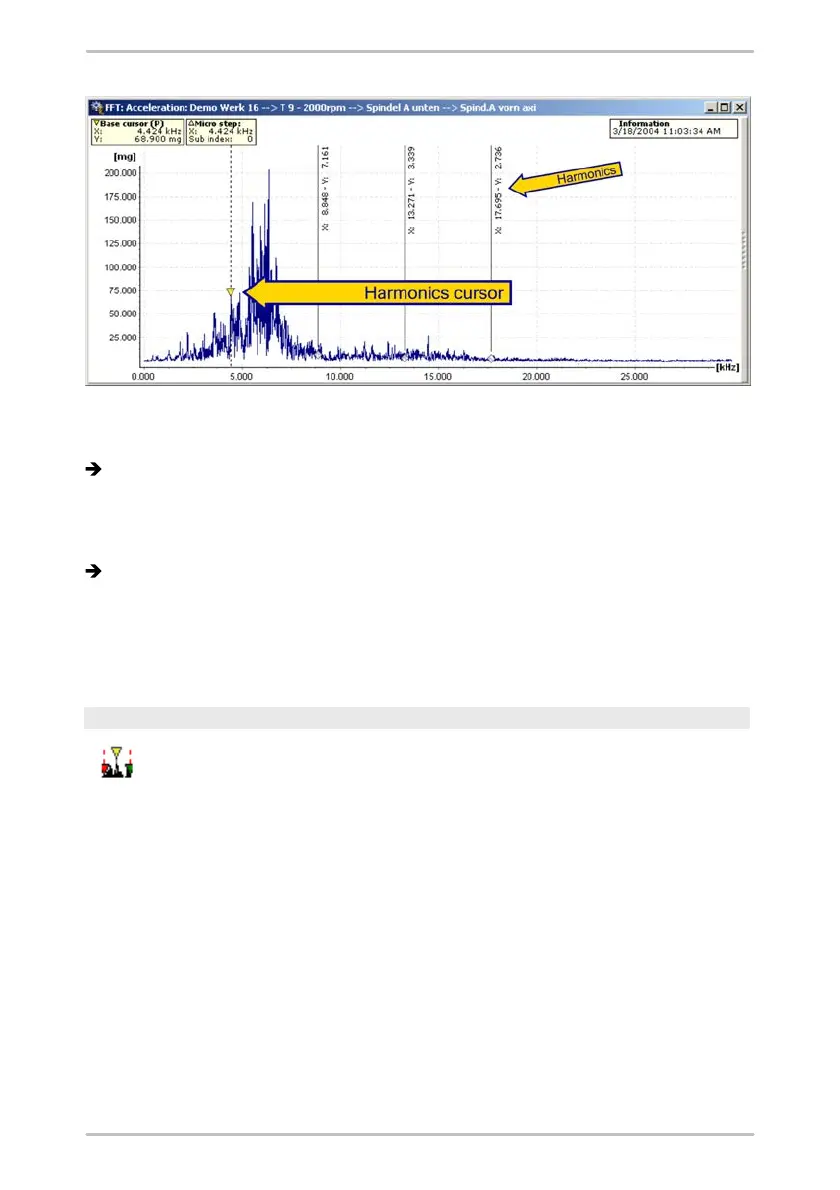

1.
Select the harmonic cursor option from the cursor selection list or press the
F5 button.
The base cursor and vertical lines are displayed at the harmonic of the basic
frequency.
2.
You can shift the base cursor to any desired measuring point in the diagram
using the left-hand mouse button.
When the position of the harmonic cursor is changed the harmonics are
automatically shifted. The cursor information above the diagram displays the
measured values for the base cursor and the micro-increments that were set.
The measured values of the harmonics are each displayed as vertical text next
to the corresponding vertical line.
Sideband cursor
You can use the sideband cursor to determine additional measured
values in definable sidebands starting from the base cursor.
To do this, the base cursor must first be placed at any desired
measuring point in the diagram. You can then shift the nearest
sideband to another measuring point in the diagram. All other
sidebands that are displayed are simultaneously adjusted.
