11.3 Motor Port
Signal
Shaping Photoele-
ctric
isolation
Different-
ial output
X
Y+
Y-
XDIR/XPWM-
XPWM+
YDIR/YPWM-
YPWM+
XDIR+
XDIR-
YDIR+
YDIR-
XCP+
XCP-
YCP+
YCP-
System

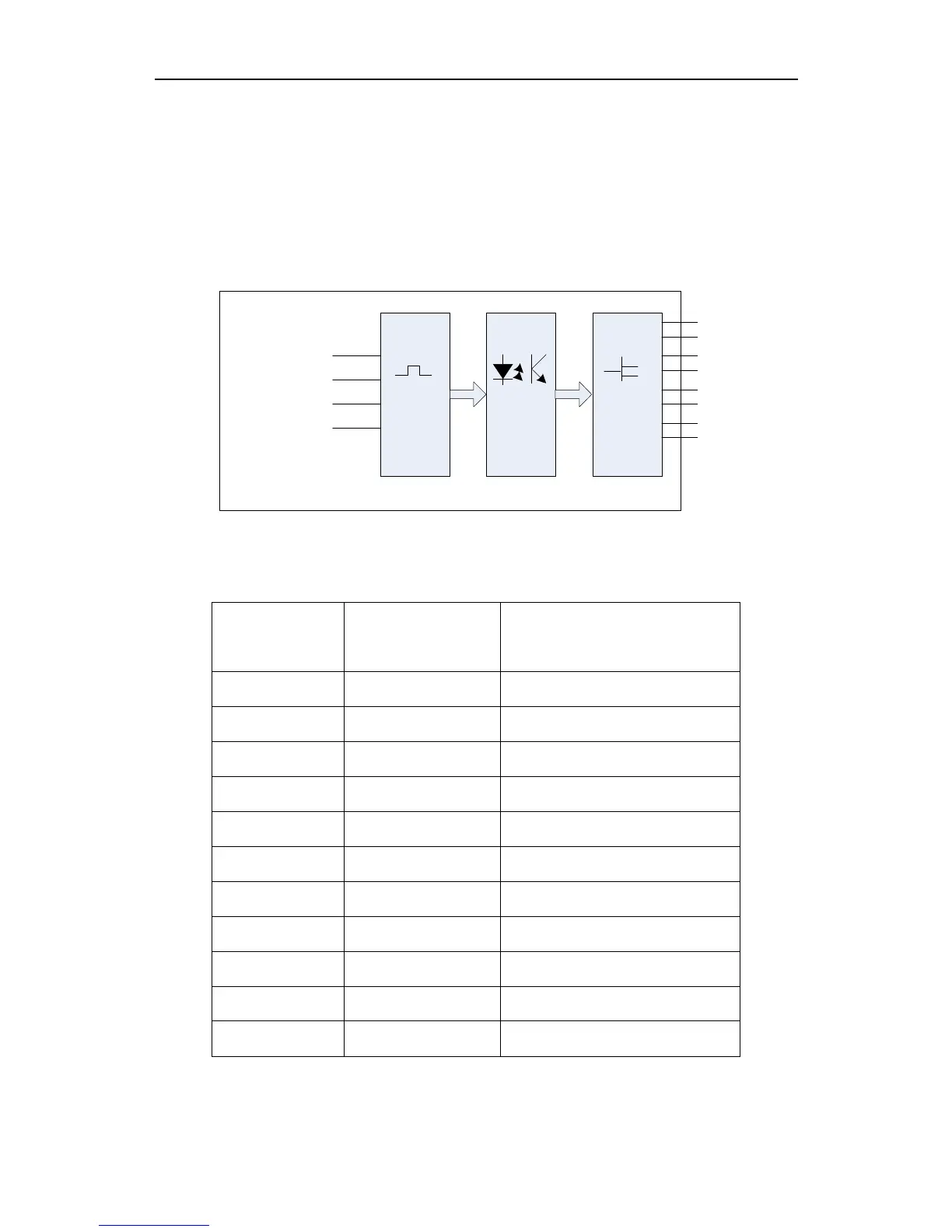

Fig11.8 motor port schematic diagram
Signal definition table
Number of the 15
pin interface
signal Remarks
1 XDIR+ Positive at the horizontal axis
9 XDIR- Negative at the horizontal axis
2 XCP+ Positive pulse at the horizontal axis
3 YDIR+ Positive at the vertical axis
11 YDIR- Negative at the vertical axis
4 YCP+ Positive pulse at the vertical axis
12 YCP- Negative pulse at the vertical axis
5,13,6,14 Not used
7 +5V +5V/500mA Power output
15,8 5VG 5V Power Ground
