FangLing F2500(A/B) - A3.4 Connection with Ontime Thc

Appendix 3 Interpretation of Wiring Connection between F2000 Series and Common THC
129

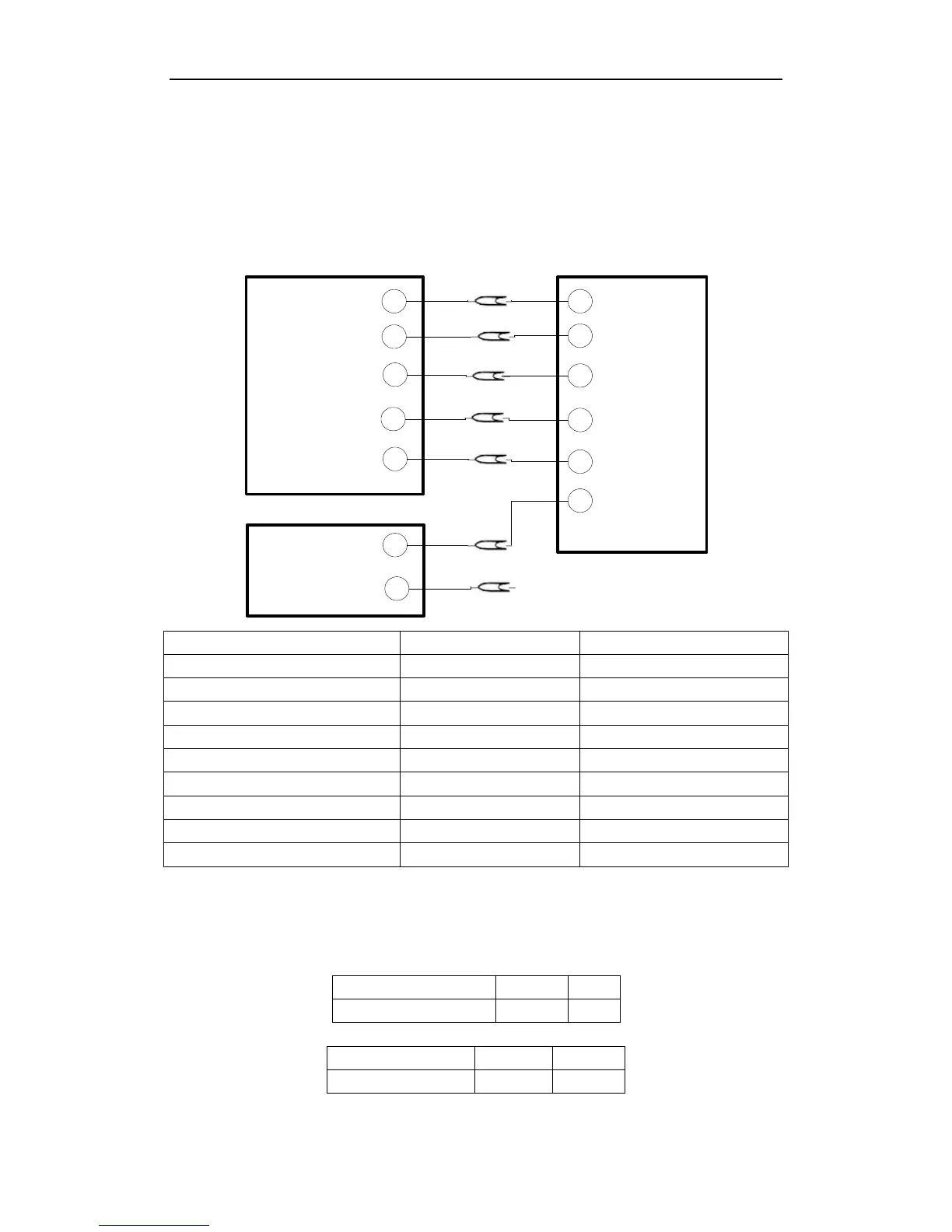

A3.4 Connection with ONTIME THC
24VG
16
18
02
15
Plasma arc starting
Lock THC
Torch up
Torch down
13
F2000 input ports
4
1
2
3
6
5
START ARC
AUTO
UP
DOWN
COM
MOTION
F2000 output ports ONTIME AVC103(CON1)
Arcing feedback
04
13
24VG
Plasma parameter Range of value Recommended value
Delay Before Arc 0 0
Pierce time 0 0
Torch up time 0-3 3
Arcing Check Time: 5-30 30
Position check Time: 0 0
Speed to lock THC 90-100 95
Distance to lock THC 0-15 10
Lose arc delay 0-1 0.5
Watch arc enable Yes Yes
The method of setting parameter:
F2100T, F2200T, F2300 T (A/B), F2500 T (A/B), F2600T:
F4 (Setups), F3 (Plasma).
Input definition
Port Type
Position detect 05
●
Output definition
Port Type
Lock THC 18
●
The method of definition:
