Chapter 11 Port Explanation
103
11.4 Arc THC Module Interface (THC) (typical of the “T” in
F2000 series CNC system)
Compare to common F2000 series CNC system without arc THC, F2000T CNC
system adds the interface of arc THC as the red frame area in following figure based on
the original system.

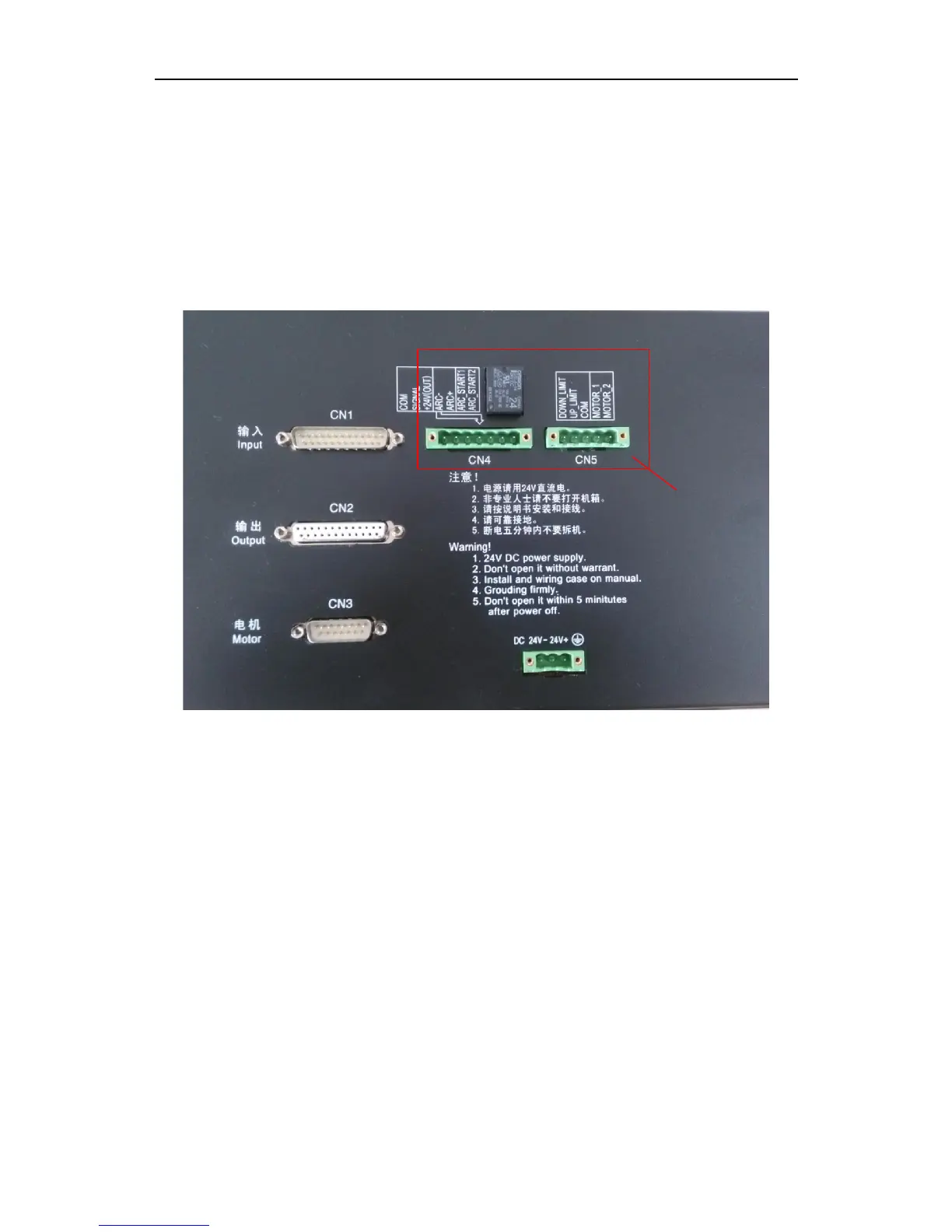

Fig.11.12 F2100T system interface schematic diagram
11.4.1 DC MOTOR Interface Instruction
M+、M- are DC MOTOR export pins, LIM+、LIM- are import pins, COM is public
ground。M+、M- link with DC motor, LIM+、LIM- link with upper limit and lower limit
switch of torch.
Interpret: when lifting motor limiting isn’t used, user needs to short COM and LIM+,
short COM and LIM-.
The maximum power of Lifting motor: 45W.
Arc THC
interface
