FangLing F2500(A/B) - A3.3 Connection with Sh-Hc30 Thc

Appendix 3 Interpretation of Wiring Connection between F2000 Series and Common THC
127

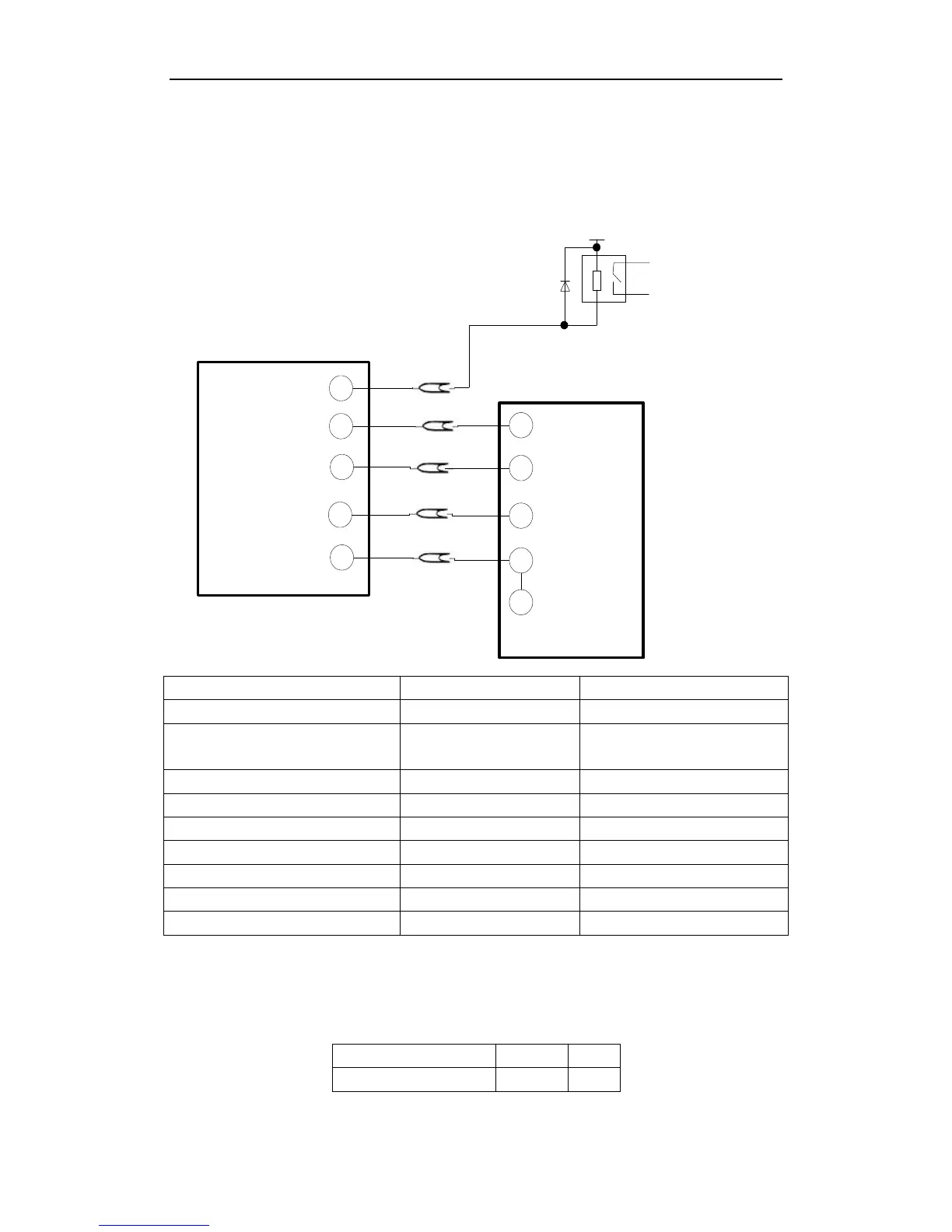

A3.3 Connection with SH-HC30 THC
10
12
13
8
15
AUTO
UP
DOWN
GND
GND
F2000 output ports
SH-HC30
(DB15)
Connect to plasma
controller
24VG
16
18
02
15
Plasma arc starting
Lock THC
Torch up
Torch down
13
Plasma parameter Range of value Recommended value
Delay Before Arc 0 0
Pierce time 0-3
According to thickness of
plating
Torch up time 0-3 3
Arcing Check Time: 0 0
Position check Time: 3-30 15
Speed to lock THC 90-100 95
Distance to lock THC 0-15 10
Lose arc delay 0-1 0.5
Watch arc enable No No
The method of setting parameter:
F2100T, F2200T, F2300 T (A/B), F2500 T (A/B), F2600T:
F4 (Setups), F3 (Plasma).
Input definition
Port Type
Position detect 05
●
