Chapter 4 Part Option
36
The result is shown in figure 4.13:
F5
SelLinePierce
F6 EditFile F7 Revert
FLSK F2200T
Version 3.3.71.1
Speed:
00000
File:
SHAPE_43.TXT
Status:
Stop
Current Line/Hole:
00000/00000
+X:500.00 -X:0.00 +Y:500.00 -Y:0.00
X：+000000.0
Y：+000000.0
1:（TEST PATTERN）
2：G92
【X】 Xmirror
【Y】 Ymirror
CutSpeed 【X】1000.00 Kerf【N】1.20
ManualSpeed【Y】3000.00 Angle 0.00
Manual 【F】 keepMov
StepDis【G】 5.00 Flame Cu 【M】
F1
StartPoint
F2 Angle F3 Array
F4 Scale
F8 OK

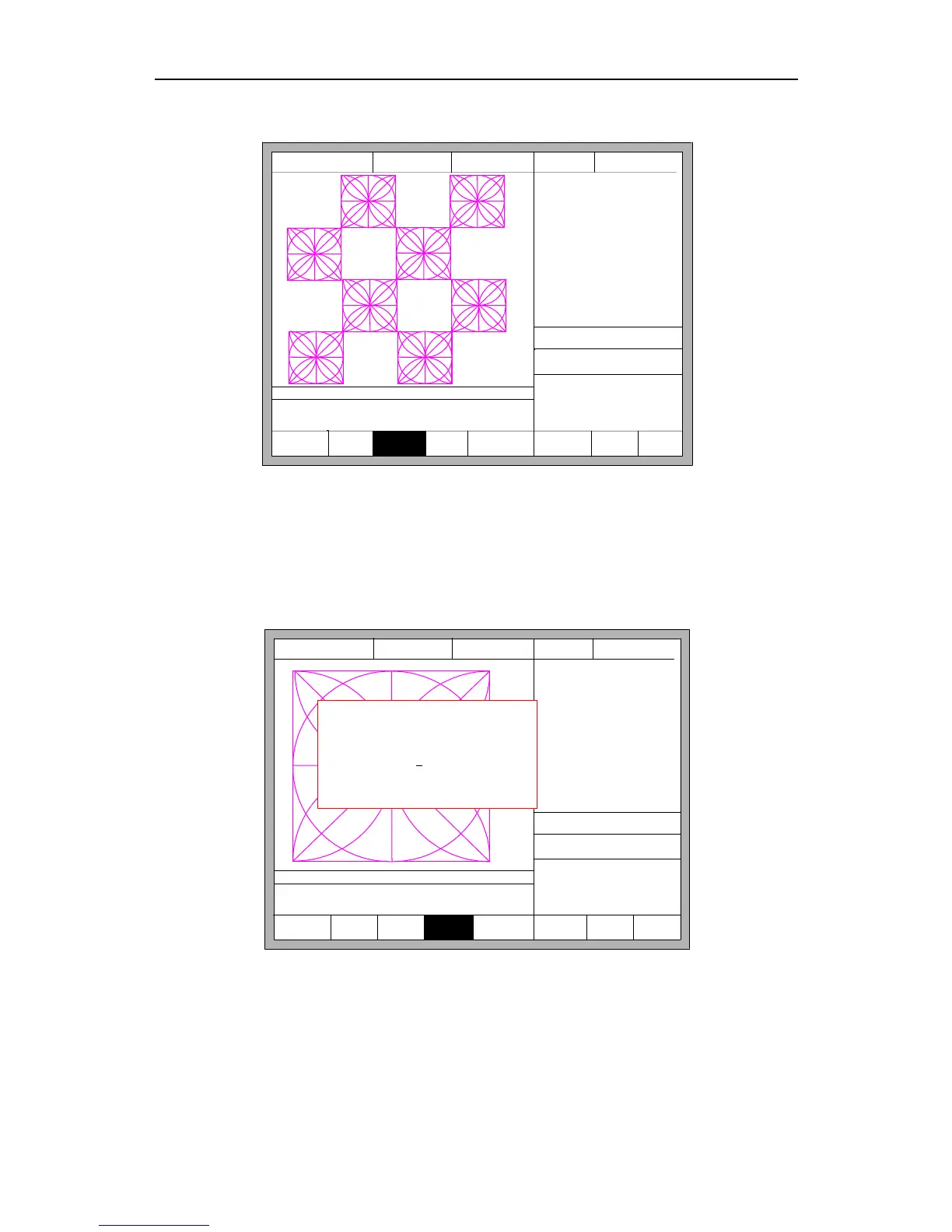

Fig 4.13 Result of arrangement in nest
4.5 Zoom in/out
In the part options menu, press [F4] (zoom in/out), the system prompt as figure 4.14:
F4 Scale
F5
SelLinePierce
F6 EditFile F7 Revert
FLSK F2200T
Version 3.3.71.1
Speed:
00000
File:
SHAPE_43.TXT
Status:
Stop
Current Line/Hole:
00000/00000
+X:500.00 -X:0.00 +Y:500.00 -Y:0.00
Operate Mode:
PartOption
X：+000000.0
Y：+000000.0
Enter proportion
1.00
【X】 Xmirror
【Y】 Ymirror
CutSpeed 【X】1000.00 Kerf【N】1.20
ManualSpeed【Y】3000.00 Angle 0.00
Manual 【F】 keepMov
StepDis【G】 5.00 Flame Cu 【M】
F1
StartPoint
F2 Angle F3 Array F8 OK
Fig 4.14 Set scales
After entering the scale, press 【Enter】, then the system will automatically zoom in
or zoom out the graphic when the parameter is checked to be correct.
