Chapter 11 Port Explanation
88
Chapter 11 Port Explanation
11.1 Input Port
+24V+3.3V
24VG
3.3VG
System
External
input
signal
To
CPU

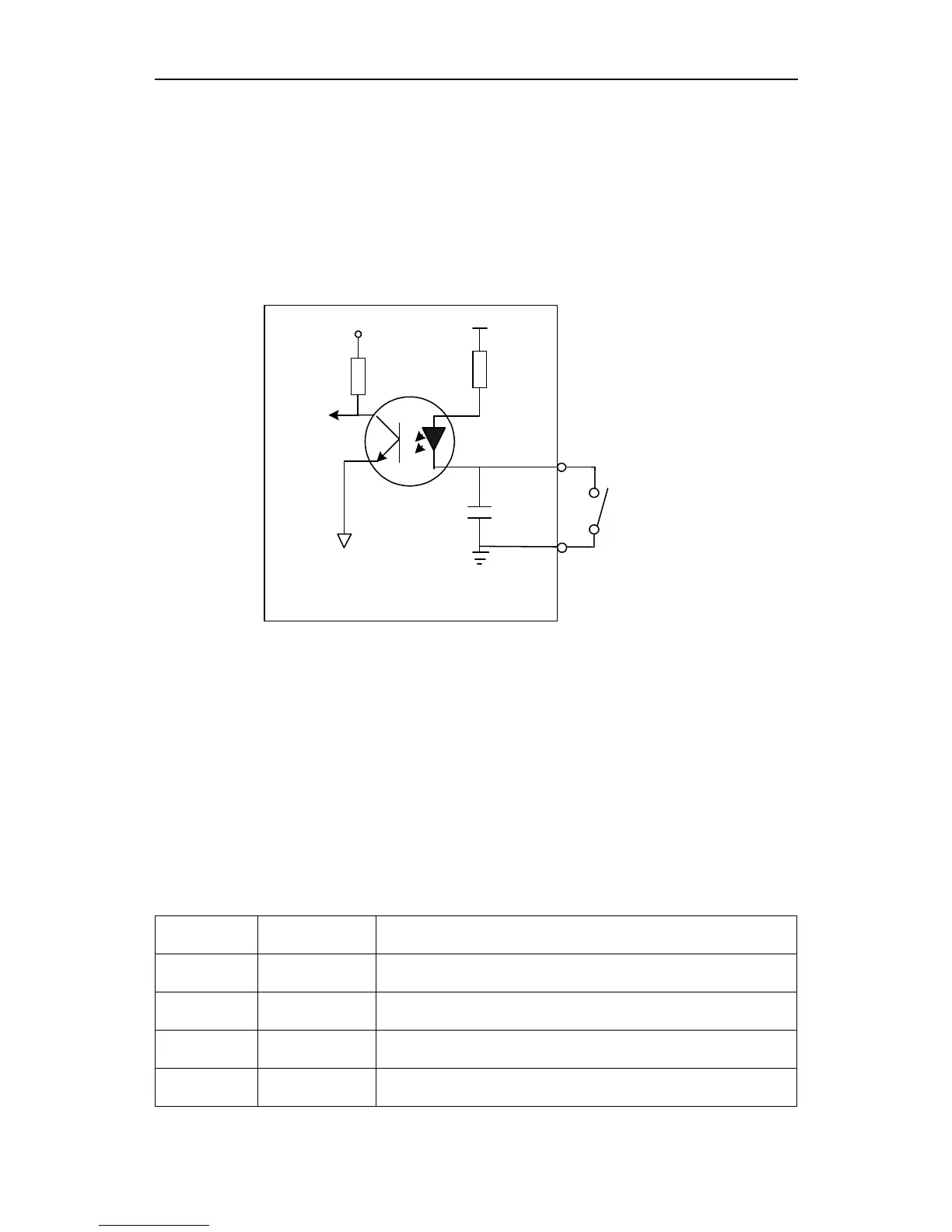

Fig11.1 input port circuit
 Input signal is a mechanical contact switch, normally open type and closed type are all
supported, it is effective when it is connected to 24VG，and it is ineffective when it is
float or connected to 24V. Com-port of switch outside is connected 24VG. The other
port is connected to corresponding IO port.
 16 channel input ports totally
 Input signal definition
Table 11.1 Input port definition
Pin number Signal name remark
1 X+ limit
X+ stop input，float it if not use, this is horizontal
14 X- limit
X- stop input，float it if not use, this is horizontal
2 Y+ limit
Y+ stop input，float it if not use, this is vertical
15 Y- limit
Y- stop input，float it if not use, this is vertical
