11.4.5 Wiring Diagram of F2100T CNC System with Arc THC Module
Power import
UP_LIMIT
MOTOR_1
MOTOR_2
DOWN_LIMIT
COM
DC 24V -
DC 24V+
Lifting motor
Approach
Plasma Poewer
PE
SIGNAL
ARC-
ARC+
COM
+24V(OUT)
Brown Power positive V+
Black
Signal
Blue
Power negsative V-
+24V GND
+24V
PE
ARC-
ARC+
Patial pressure
panel
ELECTRODE
WORK
SHIELD
PE
Electorde-
Work
START1
START2
Cutting work-piece
Torch
DC +24 Power
Arc_1
Arc_2
Plasma power negative
Plasma power positive
Ground
CNC
Lifting motor IO CN5
Arc and position signal
CN4
ARC_START1
ARC_START2

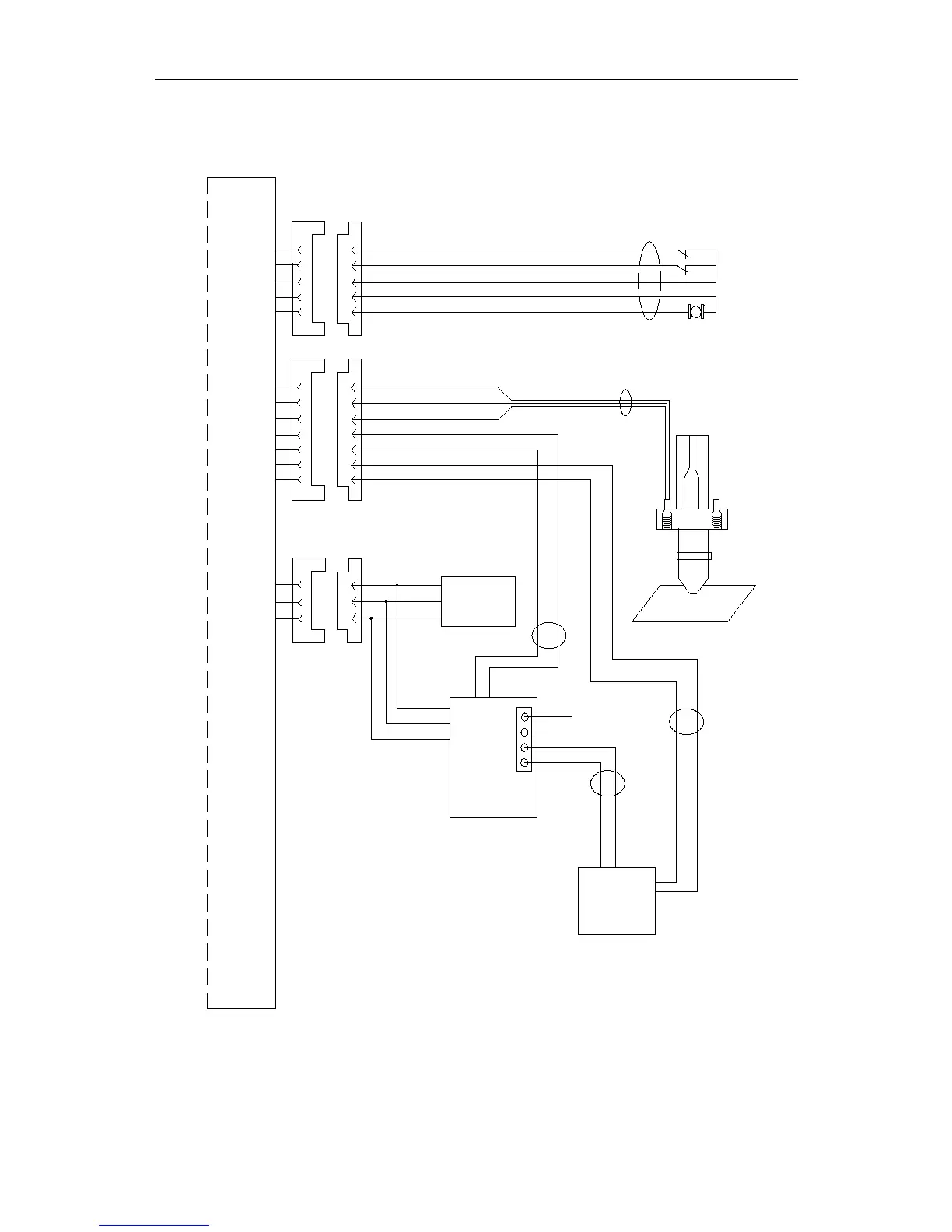

Fig.11.14 Wiring Diagram of F2100T system with Arc THC Module
