Chapter 7 Parameter Setting
58

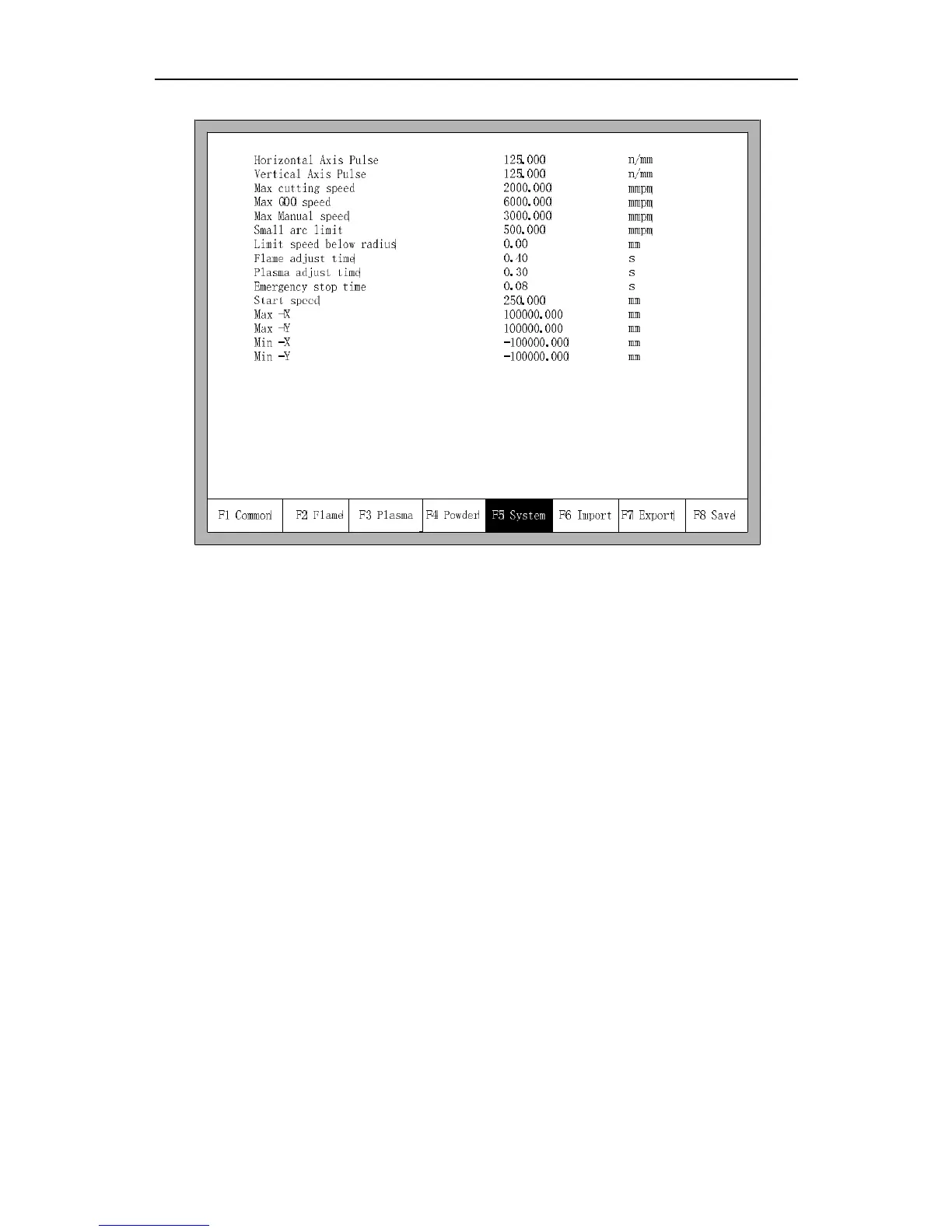

Fig 7.6 System Parameters
 Horizontal Axis Pulse: The number of pulse that system needs to generate when the
machine move1mm towards X axis, maintaining 3 digits at most after decimal point.
 Vertical Axis Pulse: The number of pulse that system needs to generate when the
machine move 1mm towards Y axis , maintaining 3 digits at most after decimal point.
 Max Cutting Speed: the maximum cutting speed, unit is mm./m.
 Max G00 speed: the allowable maximum speed when cutting tips idling.
 Small Arc Limit: Maximum speed at cutting a small arc.
Small arc definition:
0 mmpm< cutting speed <2000mmpm small arc=5mm
2000 mmpm< cutting speed <4000mmpm small arc =10mm
4000 mmpm< cutting speed <6000mmpm small arc =15mm
6000 mmpm< cutting speed <8000mmpm small arc =20mm
8000 mmpm< cutting speed <10000mmpm small arc =25mm
10000mmpm< cutting speed <12000mmpm small arc =30mm
12000mmpm< cutting speed <15000mmpm small arc =35mm
 Flame adjusts time: the whole time for the system accelerates from its start speed to
the expected cutting speed.
 Plasma adjust time: when plasma cutting , from the time the motor starts to the time
