RESTRICTED USE ONLY Fargo Electronics, Inc.
HDP600 High Definition Card Printer/Encoder User Guide (Rev. 2.3)
10-6

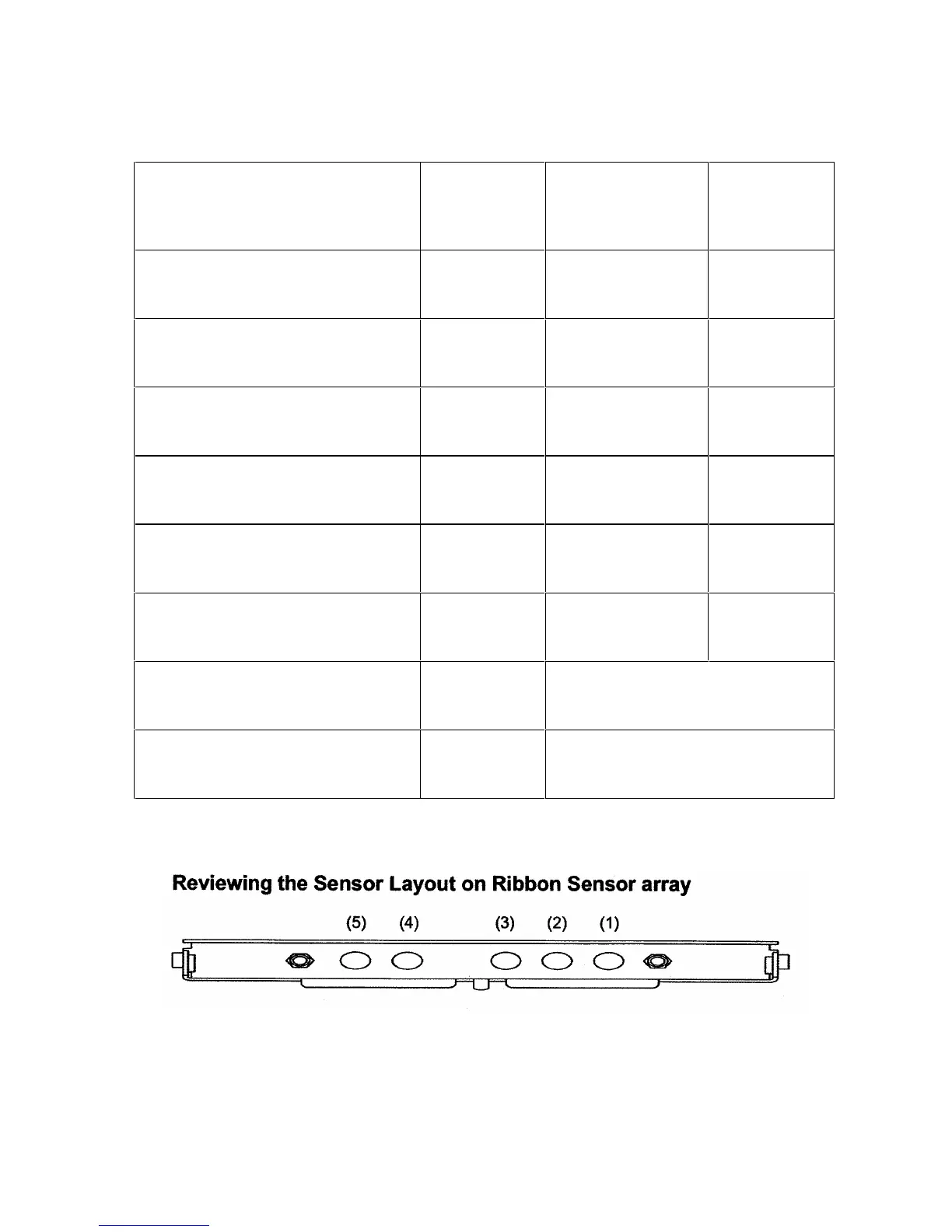

Reviewing the Sensor Locations and Voltages (continued)
Ribbon Mark Sensor 5
D860112
J9 pin 3 Blocked (.8 or
lower)
Unblocked +4
Mag Card Sensor
D860191
J6 pin 8 Covered (.9 or
lower)
Uncovered 3.0
- 3.5
Flipper Home Sensor
D860128
J6 pin 4 Covered (.9 or
lower)
Uncovered 3.0
- 3.5
Stack Lift Sensor
D860099
J3 pin 12 Unblocked (.17 or
lower)
Blocked 3.0 -
3.5
Cover Open / Close Sensor
D860094
J3 pin 16 Unblocked (.17 or
lower)
Blocked 3.0 -
3.5
Card Feed Sensor
D860096
J7 pin 4 Unblocked (.17 or
lower)
Blocked 3.0 -
3.5
Flipper Table Card Sensor
D860096
J7 pin 8 Unblocked (.17 or
lower)
Blocked 3.0 -
3.5
Print Film Sensor
D860146 / D860098
J36 pin 4 Use the Auto Calibration Procedure
Transfer Film Sensor
D860146 / D860098
J35 pin 4 Use the Auto Calibration Procedure
