FARGO electronics HDP600 - Connecting Power to the HDP600 Printer (Cont.)

RESTRICTED USE ONLY Fargo Electronics, Inc.
HDP600 High Definition Card Printer/Encoder User Guide (Rev. 2.3)
3-24
Connecting power to the HDP600 Printer (cont.)

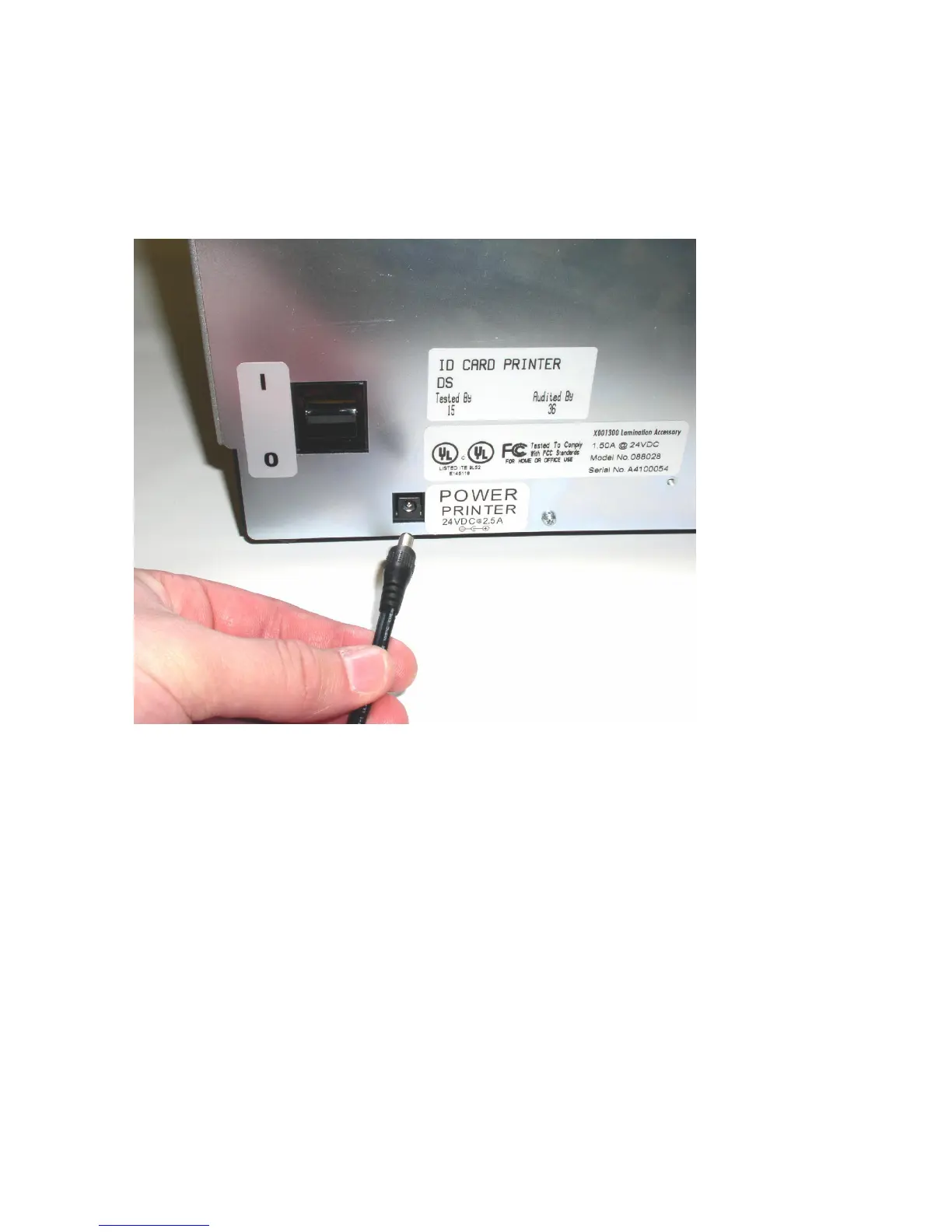

Display D - Connecting the plug from the power supply to the Printer as shown below. (Note:
If working with a non-Lamination unit, proceed to Display H in this section.)
