FARGO electronics HDP600 - Connecting Power to the HDP600 Printer (Cont.)

RESTRICTED USE ONLY Fargo Electronics, Inc.
HDP600 High Definition Card Printer/Encoder User Guide (Rev. 2.3)
3-27
Connecting power to the HDP600 Printer (cont.)
This applies to the HDP600-LC Printer only.

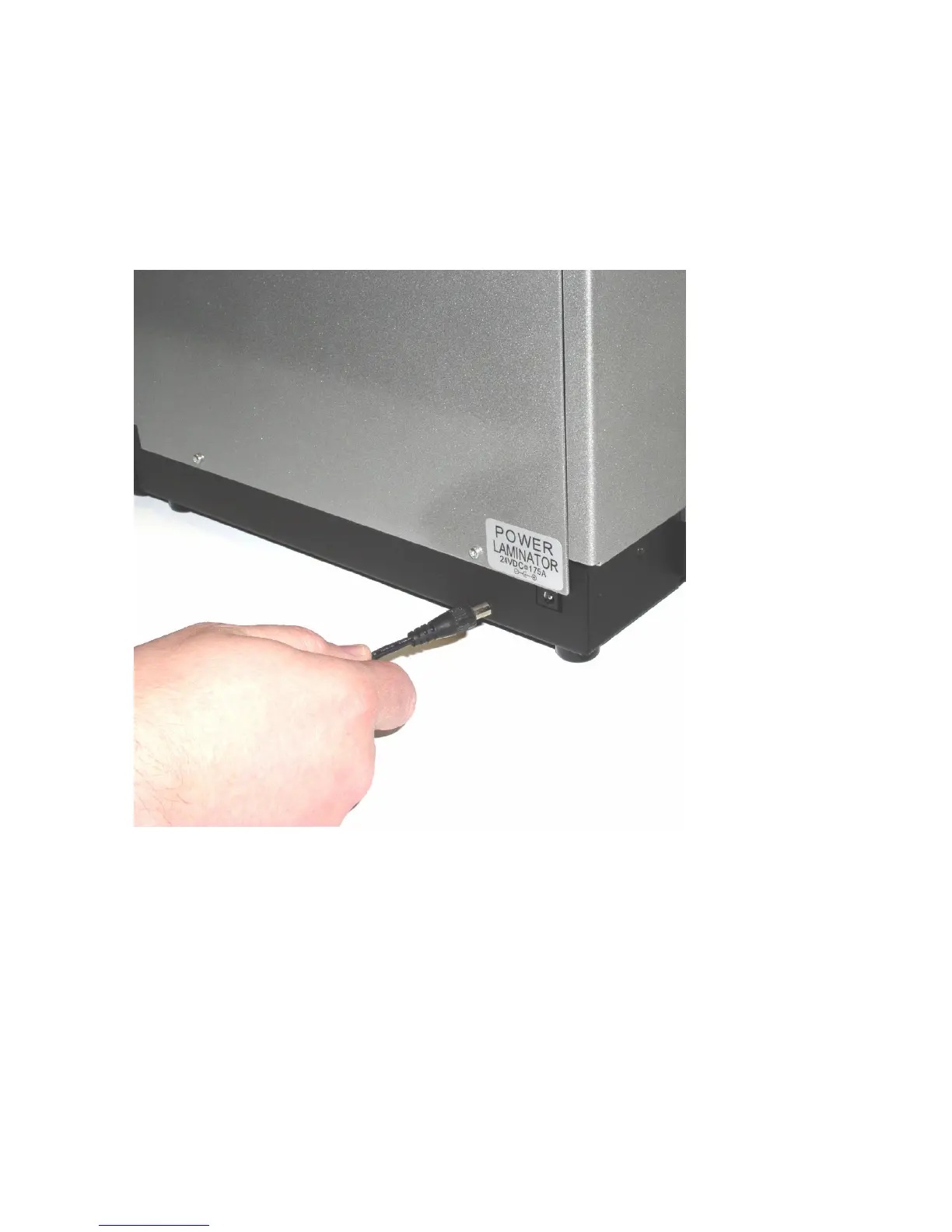

Display G - Connecting the plug from the power supply to the Card Lamination Module, as
shown below.
