Step
Procedure
3

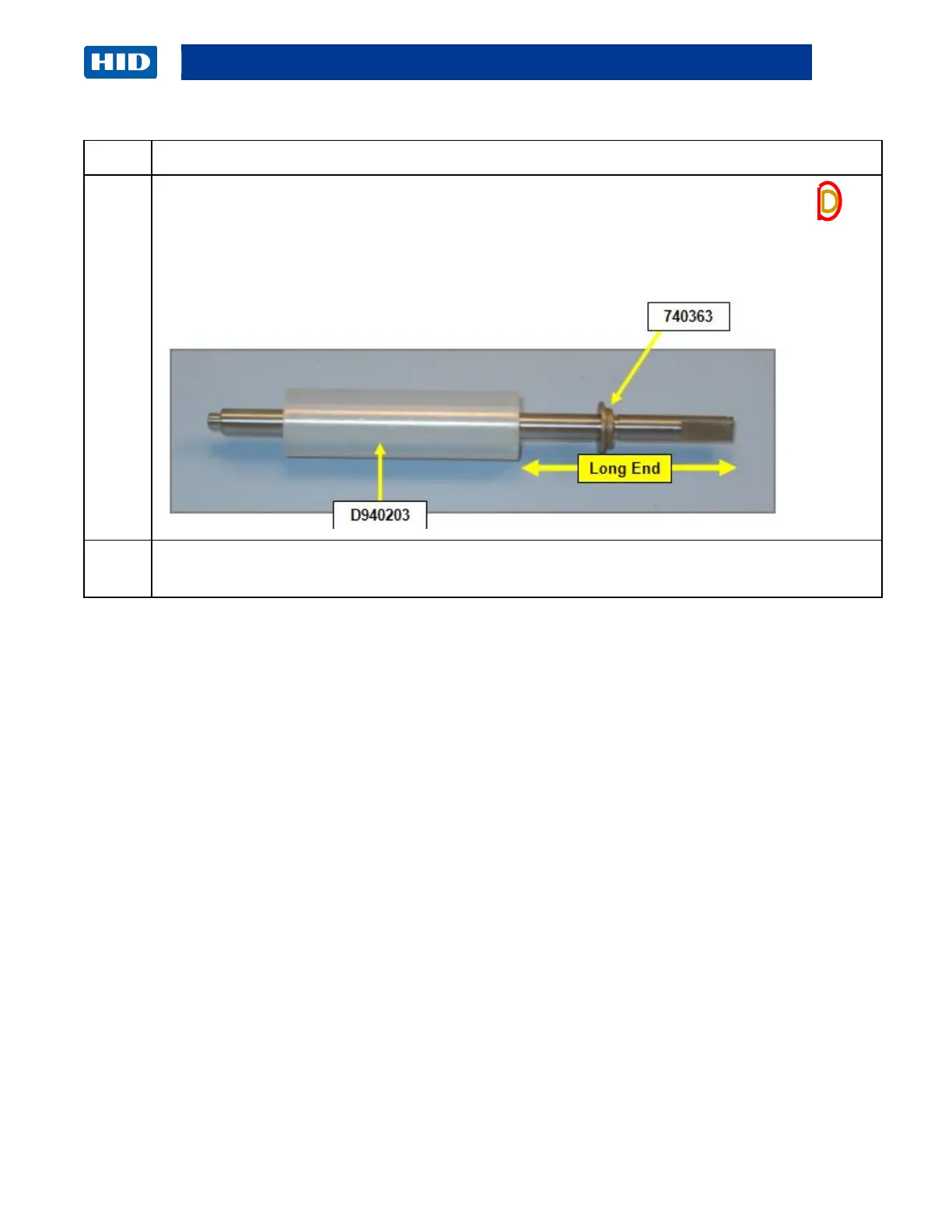

The long end goes to the RIGHT Side.
Ensure the flat on the Bearing (D940169) is aligned with the flat hole in the sideplate.
Remove the gear and clip 140048 to replace the roller
4
Reverse the instructions to re-assemble.
