Fargo HDP8500 - Remove;Replace the Cleaning Roller (D940203)

HDP8500 Service Manual, PLT-01583, 1.1
© 2013 HID Global Corporation/ASSA ABLOY AB. All rights reserved.
101

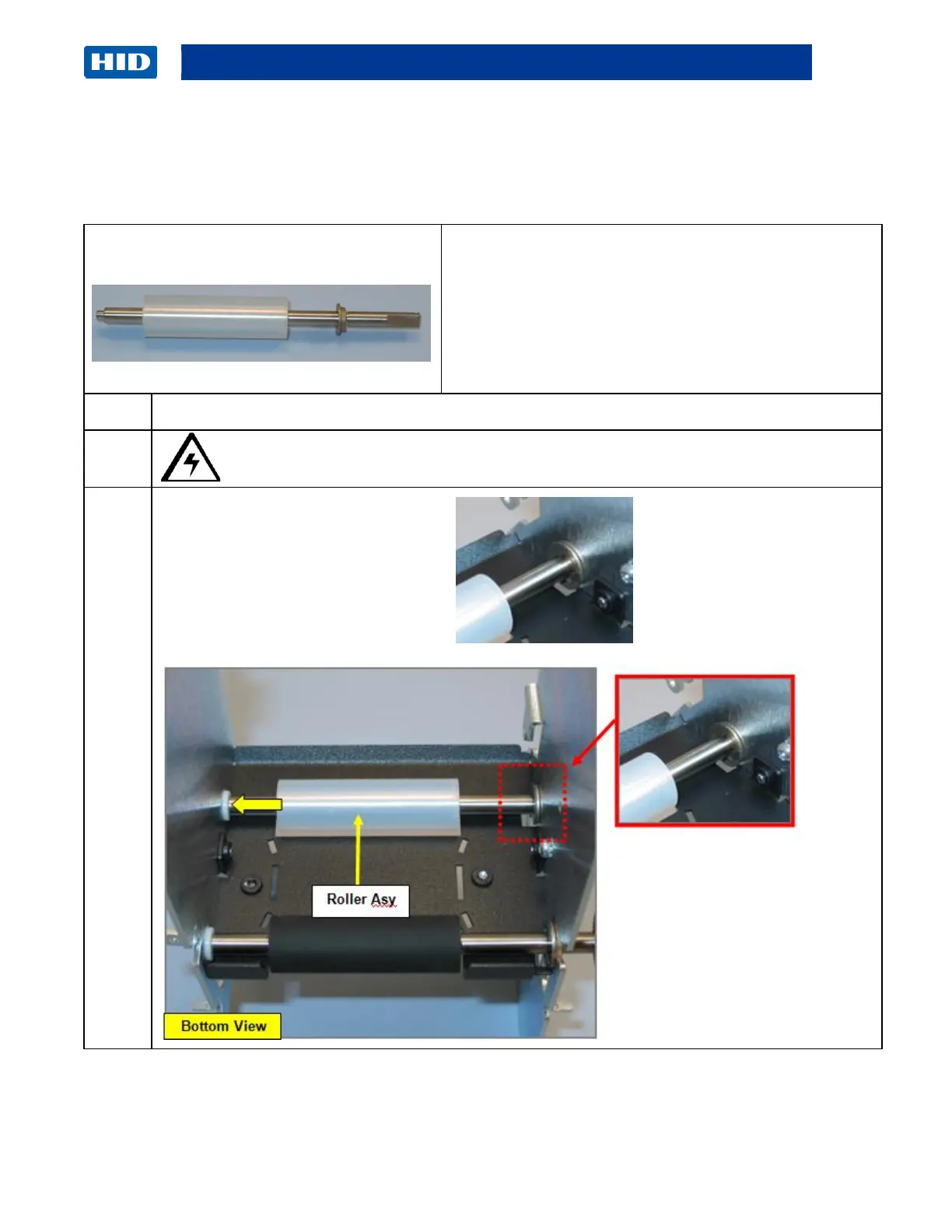

Remove/Replace the Cleaning Roller (D940203)
Cleaning Output Assembly
Tools needed: Needle Nose Pliers-
Estimated Time: 30 minutes
Preparation: Remove the Lamination Module Covers.
Important: This procedure can only be performed by
authorized service personnel.
Step
Procedure
1
Caution: Turn OFF the Printer and unplug the power cord from the Printer.
2
Remove the Retaining Ring ( 140062)
