Fargo HDP8500 - Remove;Replace the Bezel LCD Display (D940088-01)

HDP8500 Service Manual, PLT-01583, 1.1
© 2013 HID Global Corporation/ASSA ABLOY AB. All rights reserved.
22
Remove/Replace the Bezel LCD Display (D940088-01)
Tools needed: T10 Torx Driver,
Estimated Time:
Important: This procedure can only be performed by authorized
service personnel.
Step
Procedure
1
Caution: Power off the Printer by unplugging the power cord from the Printer.
2
Refer to: Remove/Replace the Input Cover (D940200-02) to access the display.
3

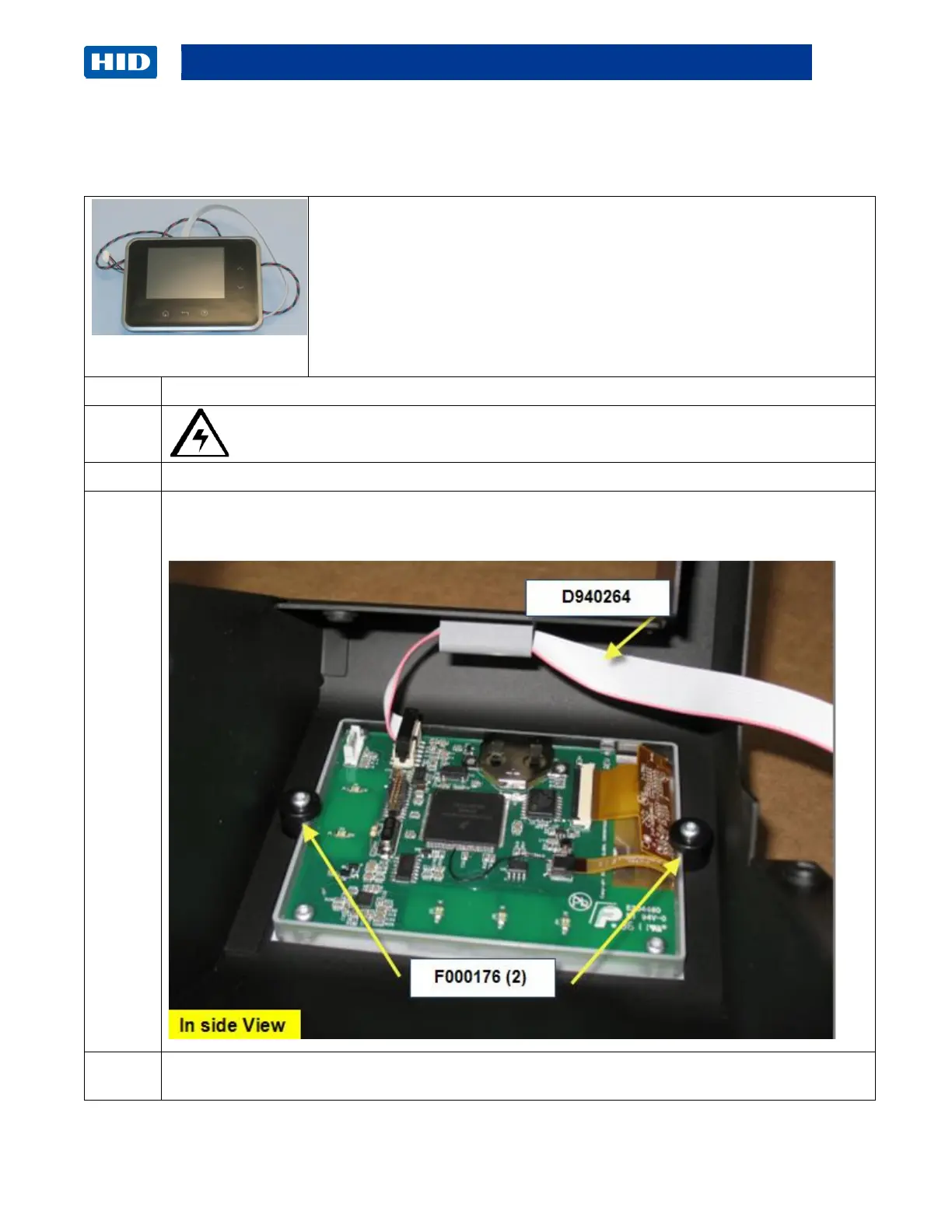

Remove the (2) screws ( F000176)
Disconnect the Display Cable (D940264) from the LCD Display PCB.
4
Reverse the instructions to re-assemble or install a new LCD Display.
