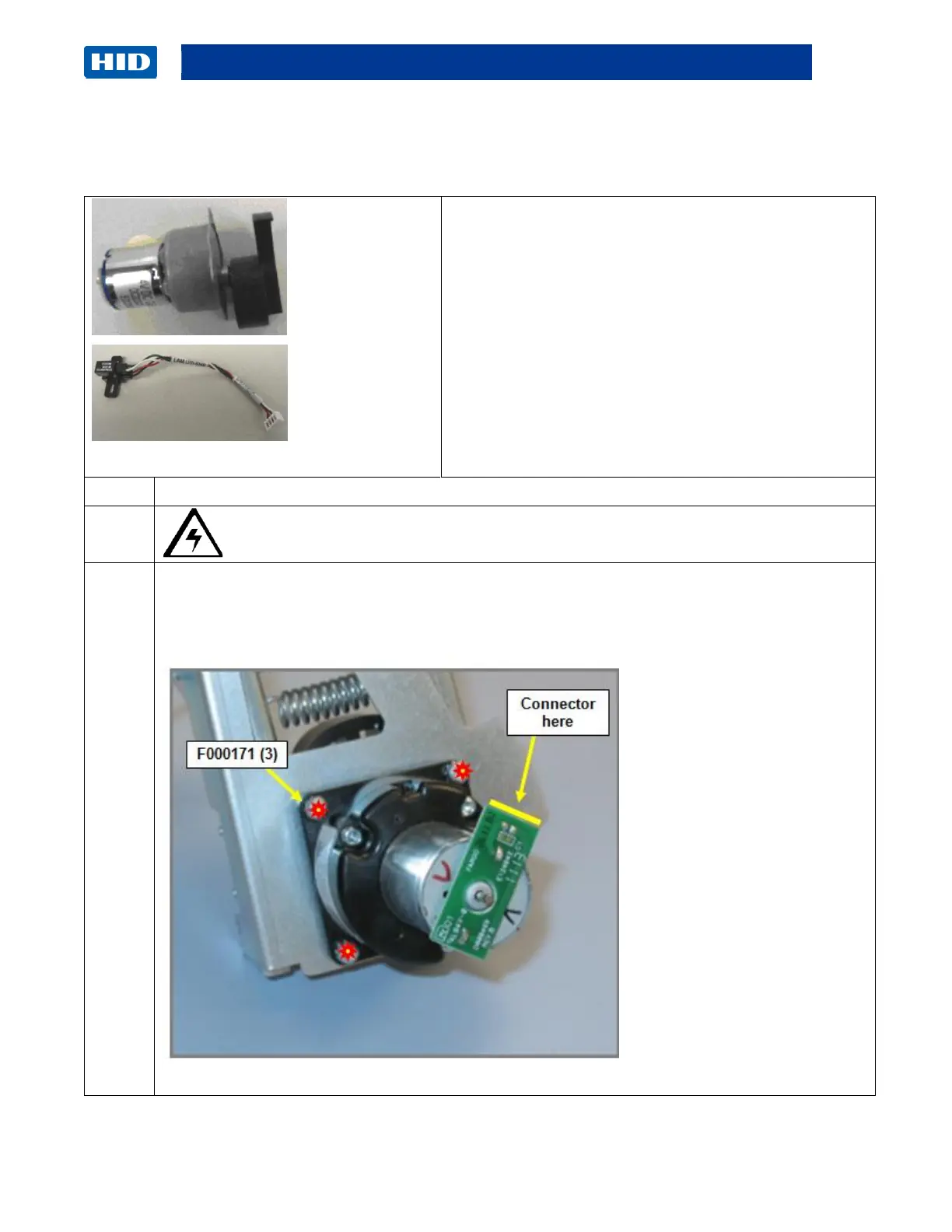

Remove/Replace the Transfer Arm Motor (D910072) or Up/Down Sensor
(D910216)
Tools needed: T10 (Torx )Driver
Estimated Time:
Preparation: Remove Top/Rear Covers.
Remove the Fan Box/Bracket Assembly.
Remove the complete Transfer Arm to access the
motor and sensor.
Important: This procedure can only be performed by
authorized service personnel.
Caution: Turn OFF the Printer and unplug the power cord from the Printer.
This procedure is used to replace the Motor (D910072)
Unplug the Sensor wire from the top of the Motor.
3 screws (F000171) hold the motor to the assembly frame.
(continued next page)
