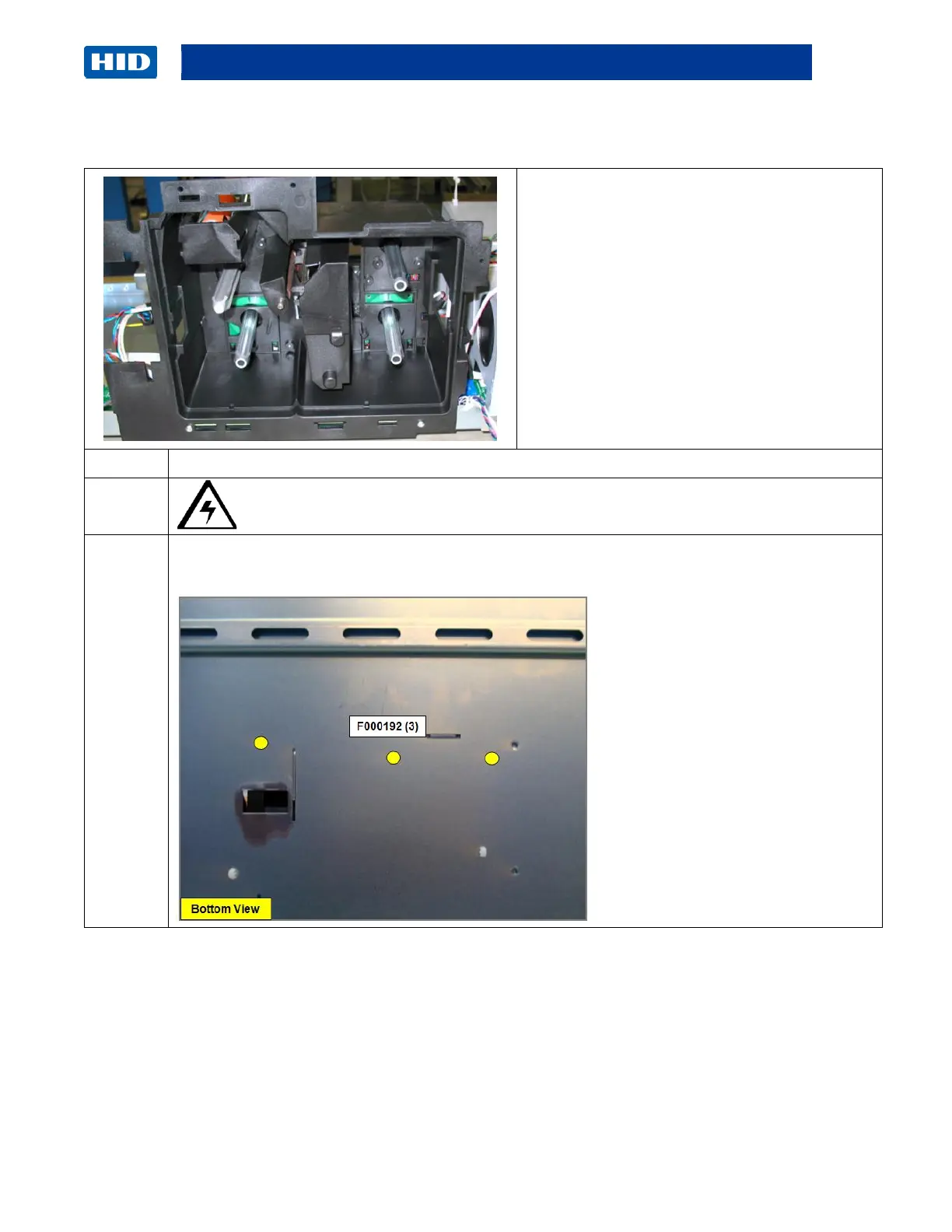

Remove the Main Printer Chassis
Tools needed: T10 Torx Driver
Estimated Time: 30 minutes
Preparation: Remove covers
Remove Fan Box/Bracket Assembly
Remove the Card Path Assembly.
Important: This procedure can only be
performed by authorized service personnel.
Note: Removing this assembly is required for
many procedures.
Caution: Power off the Printer by unplugging the power cord from the Printer.
Turn the printer over to access the baseplate.
Remove the 3 screws ( F000092)
