HDP8500 Service Manual, PLT-01583, 1.1
© 2013 HID Global Corporation/ASSA ABLOY AB. All rights reserved.
127

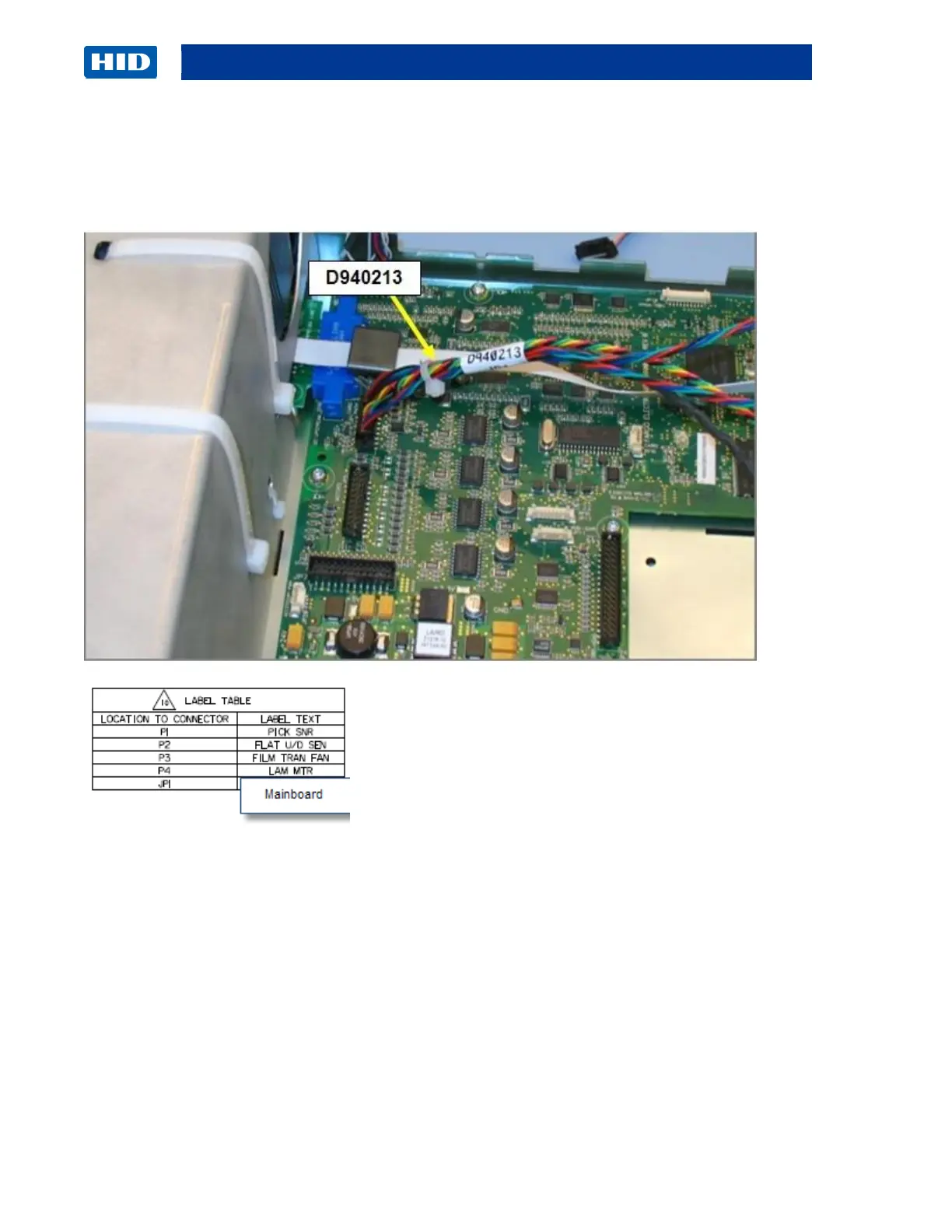

Mainboard (A940234) Cable Connection – Card Path Film Transfer Fan, Pick
Sensor, Flattener Up/Down Sensor, Lam Motor (D940213)
D940213
