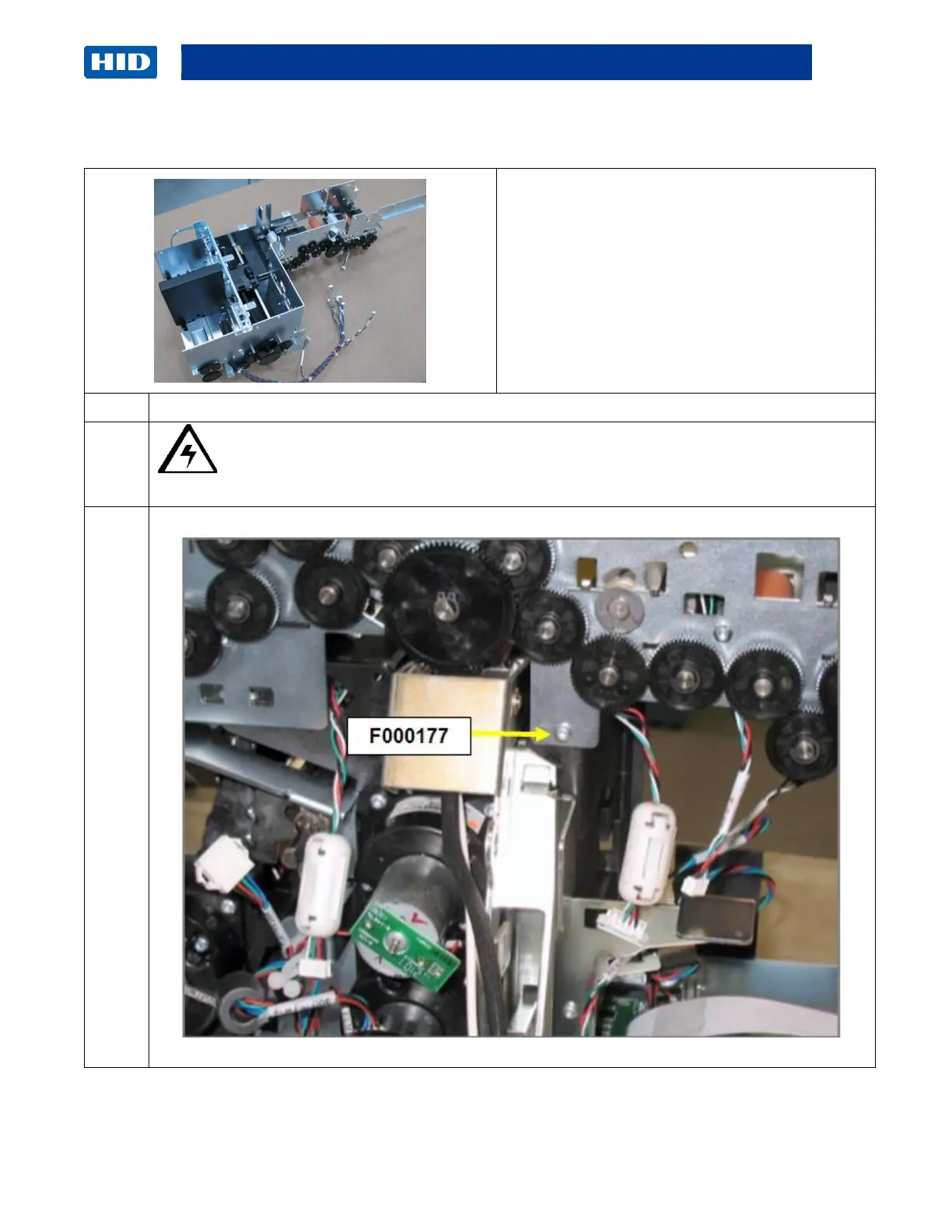

Remove the Card Path (D940005)
Tools needed: T10 Torx Driver
Estimated Time: 30 minutes
Preparation: Remove Covers
Remove the Fan Assembly
Important: This procedure can only be
performed by authorized service personnel.
Note: Removing this assembly is required for
many procedures.
Caution: Turn OFF the Printer and unplug the power cord from the Printer. Do
not allow any part of the metal Printer body to touch the Main Board.
Remove 1 screw (F000177) that attaches the Card Path to the Main Chassis.
