HDP8500 Service Manual, PLT-01583, 1.1
© 2013 HID Global Corporation/ASSA ABLOY AB. All rights reserved.
29
Step
Procedure
3

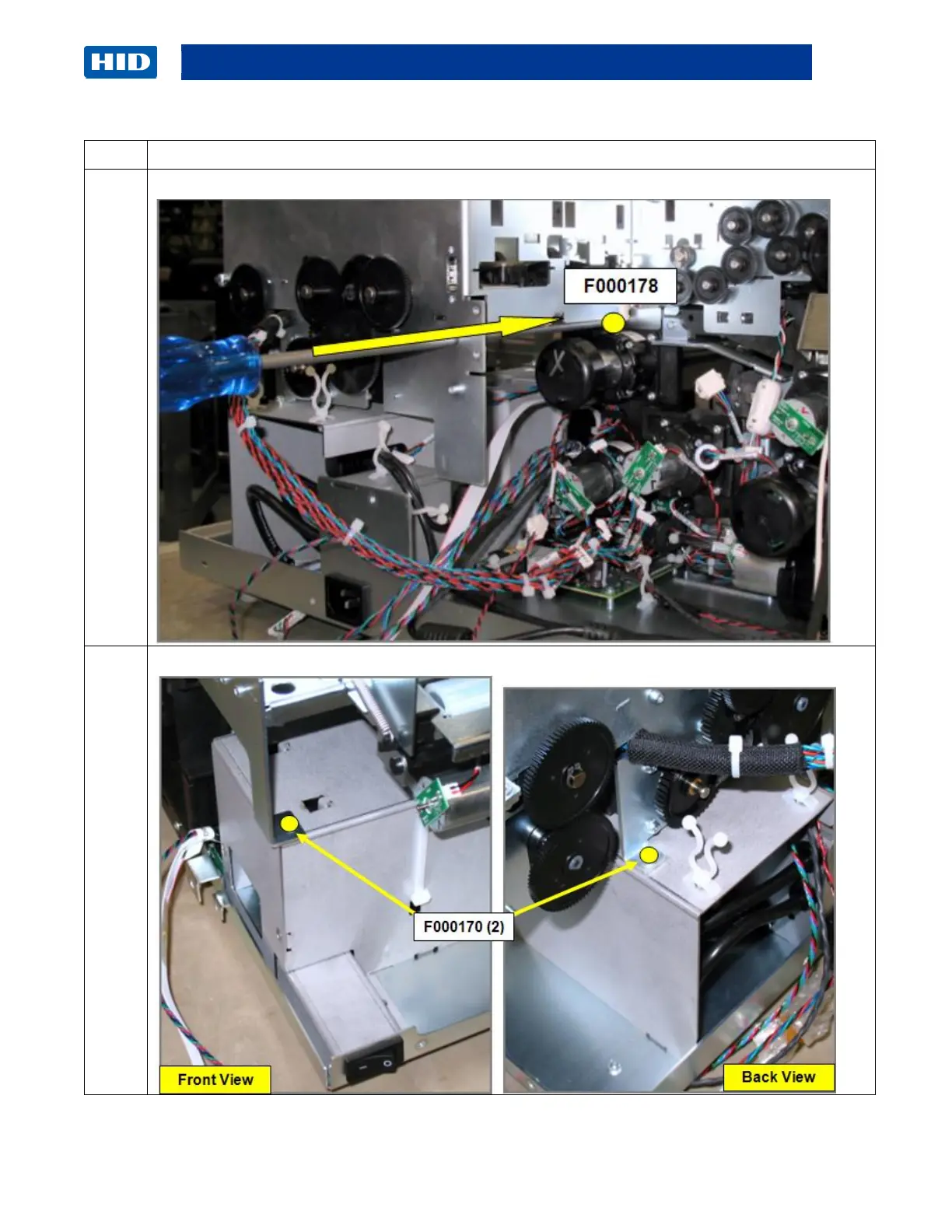

Remove 1 screw (F000178) that attaches the Card Path to the Main Chassis.
4
Remove the 2 screws (F000170) that attach the Card Path to the Power Box frame.
