Printer Board Removal

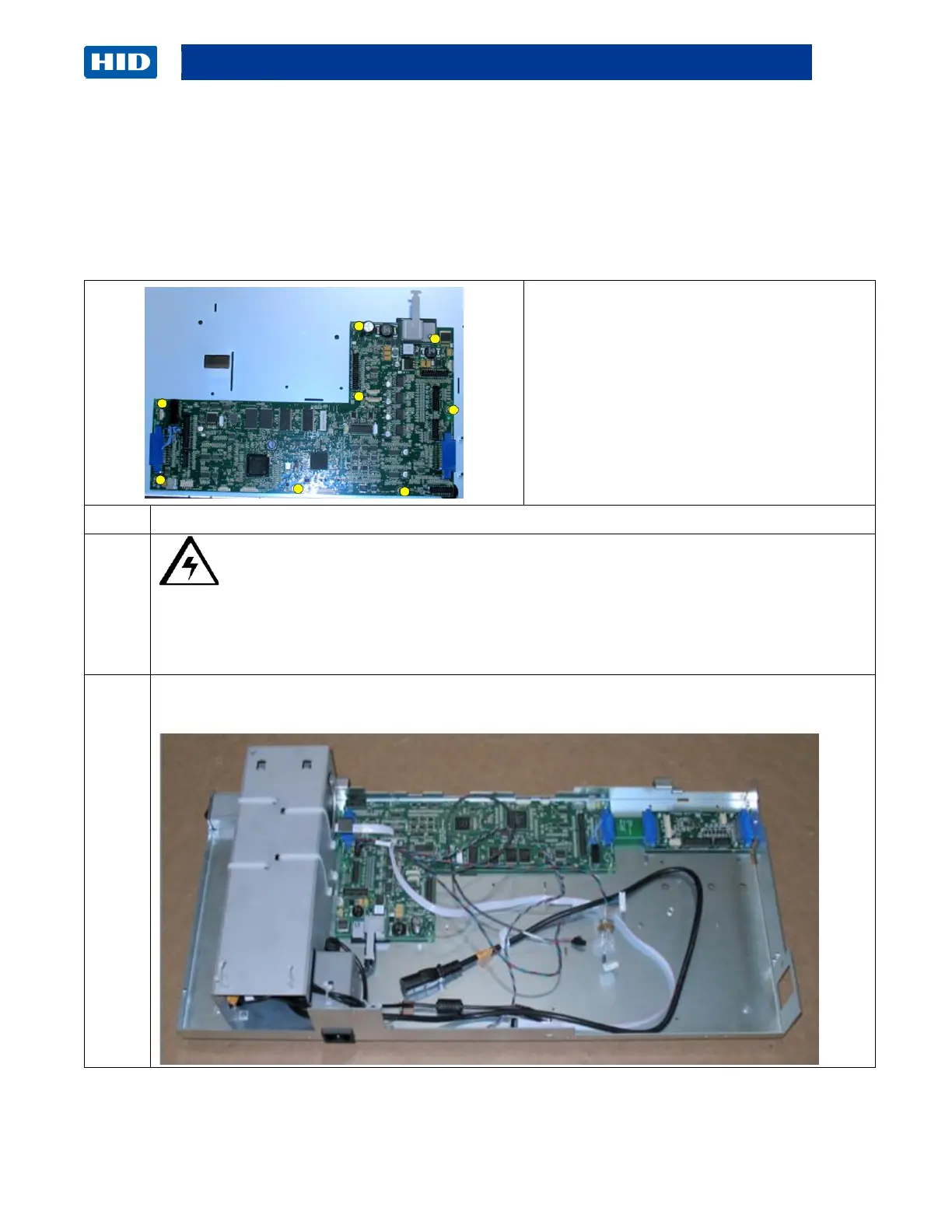

Remove the Mainboard (A940234)
Tools needed: T10 Torx Driver
Estimated Time: 30 minutes
Preparation: Remove the Covers.
Remove the Card Path.
Remove the Main Chassis.
Important: This procedure can only be
performed by authorized service personnel.
Caution: Power off the Printer by unplugging the power cord from the Printer.
Note: The PCB Transition Station Board (D940171), PCB Station Interface Extension board
(D940170), and the PCB Flip Station Interface/ IO board (D940195) are connected to the
Mainboard.
Remove the Covers, Card Path and Main Chassis to access the Mainboard located on the
BASE.
