Step
Procedure
7

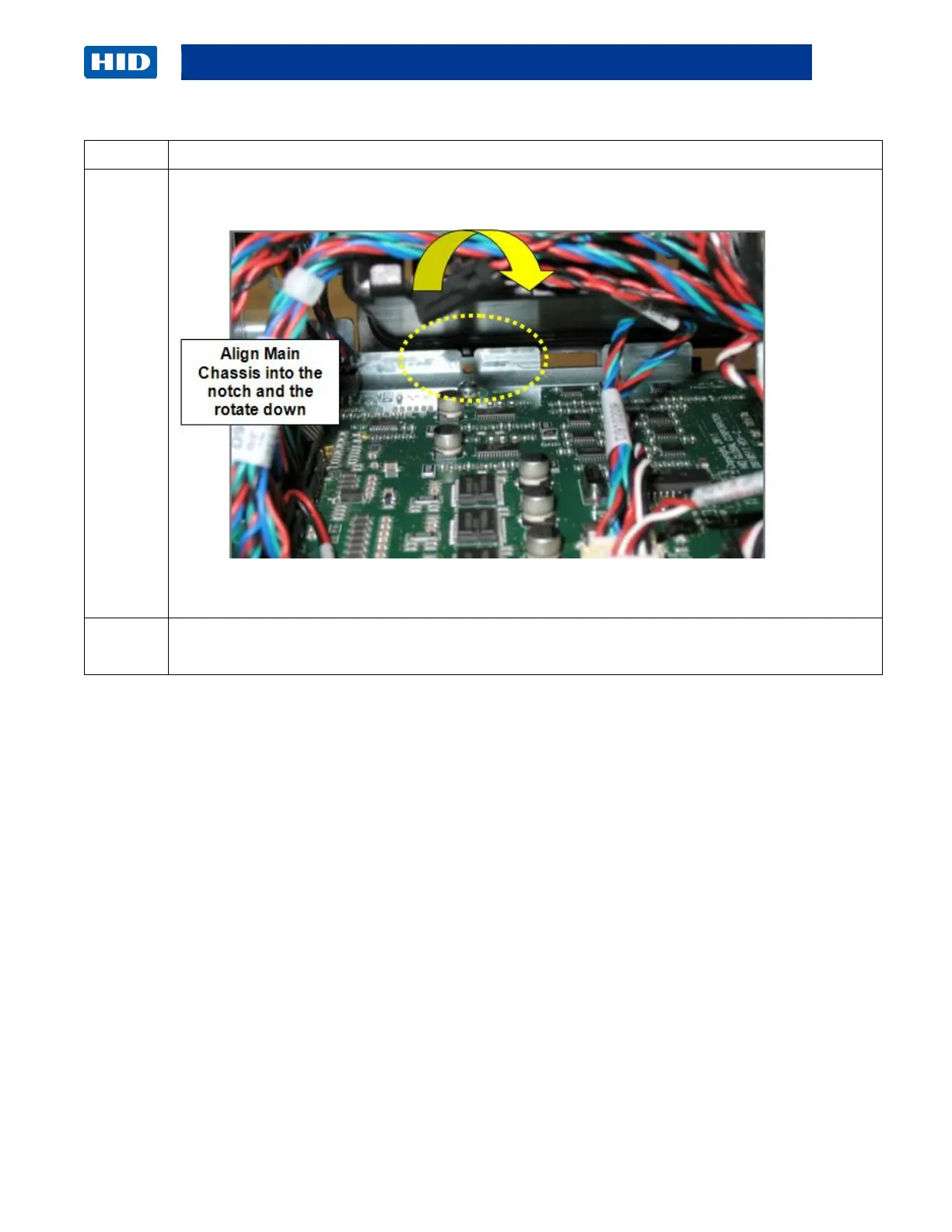

When replacing the Chassis line up the 3 square holes on the front frame and align the
chassis into the notch on the frame.
8
Reverse the instructions to re-assemble.
Refer to Appendix A for Cable Connection diagram.
