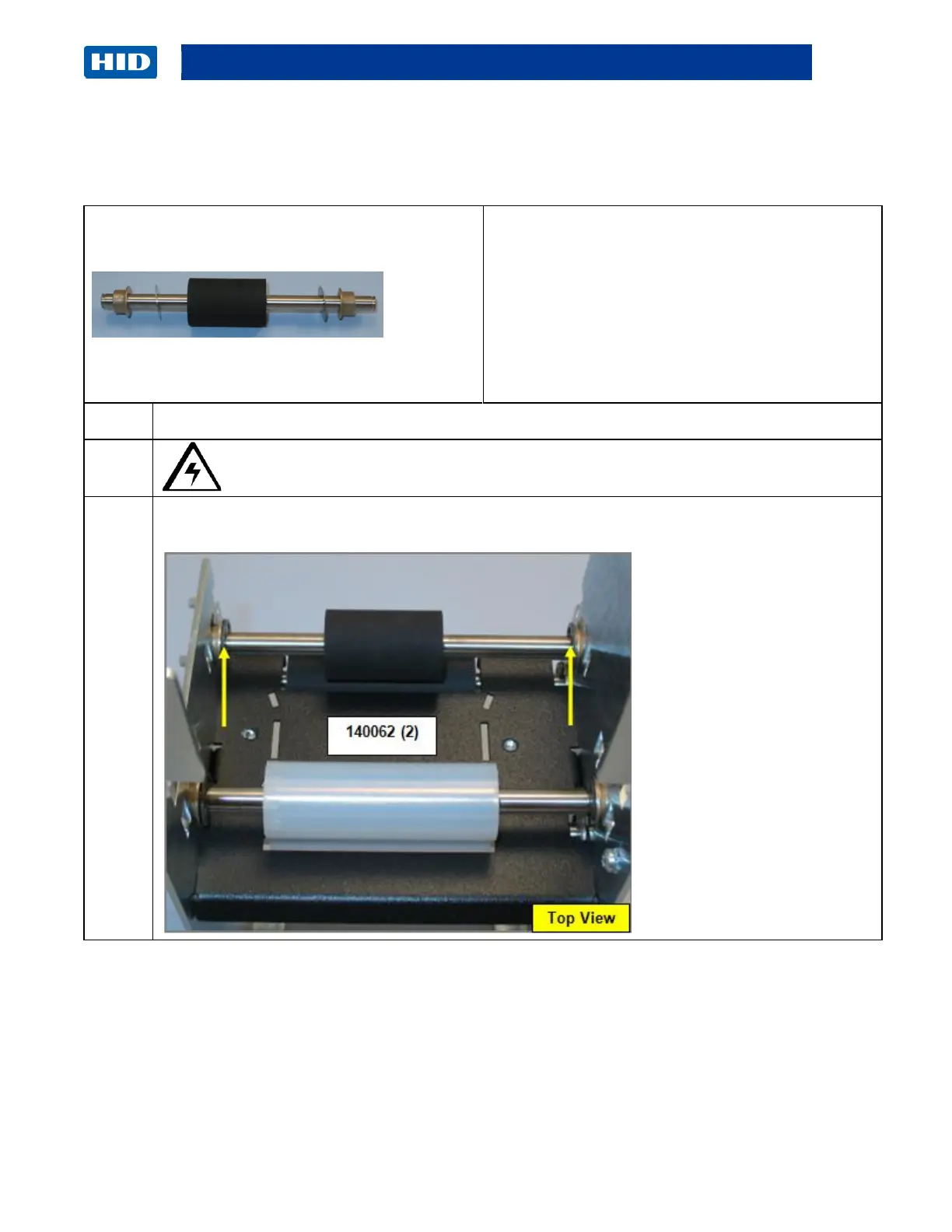

Fargo HDP8500 - Remove;Replace the Roller Transport Idler (D940108); Cleaning Output Assembly

HDP8500 Service Manual, PLT-01583, 1.1
© 2013 HID Global Corporation/ASSA ABLOY AB. All rights reserved.
105
Remove/Replace the Roller Transport Idler (D940108)
Cleaning Output Assembly
Tools needed: E-Clip
Estimated Time: 30 minutes
Preparation: Remove the Lamination Module
Covers.
Important: This procedure can only be
performed by authorized service personnel.
Step
Procedure
1
Caution: Turn OFF the Printer and unplug the power cord from the Printer.
2
Remove the Retaining Rings (140062) from inside the card path
