Fargo HDP8500 - Remove; Replace the Card Feed Motor (D900524)

HDP8500 Service Manual, PLT-01583, 1.1
© 2013 HID Global Corporation/ASSA ABLOY AB. All rights reserved.
94

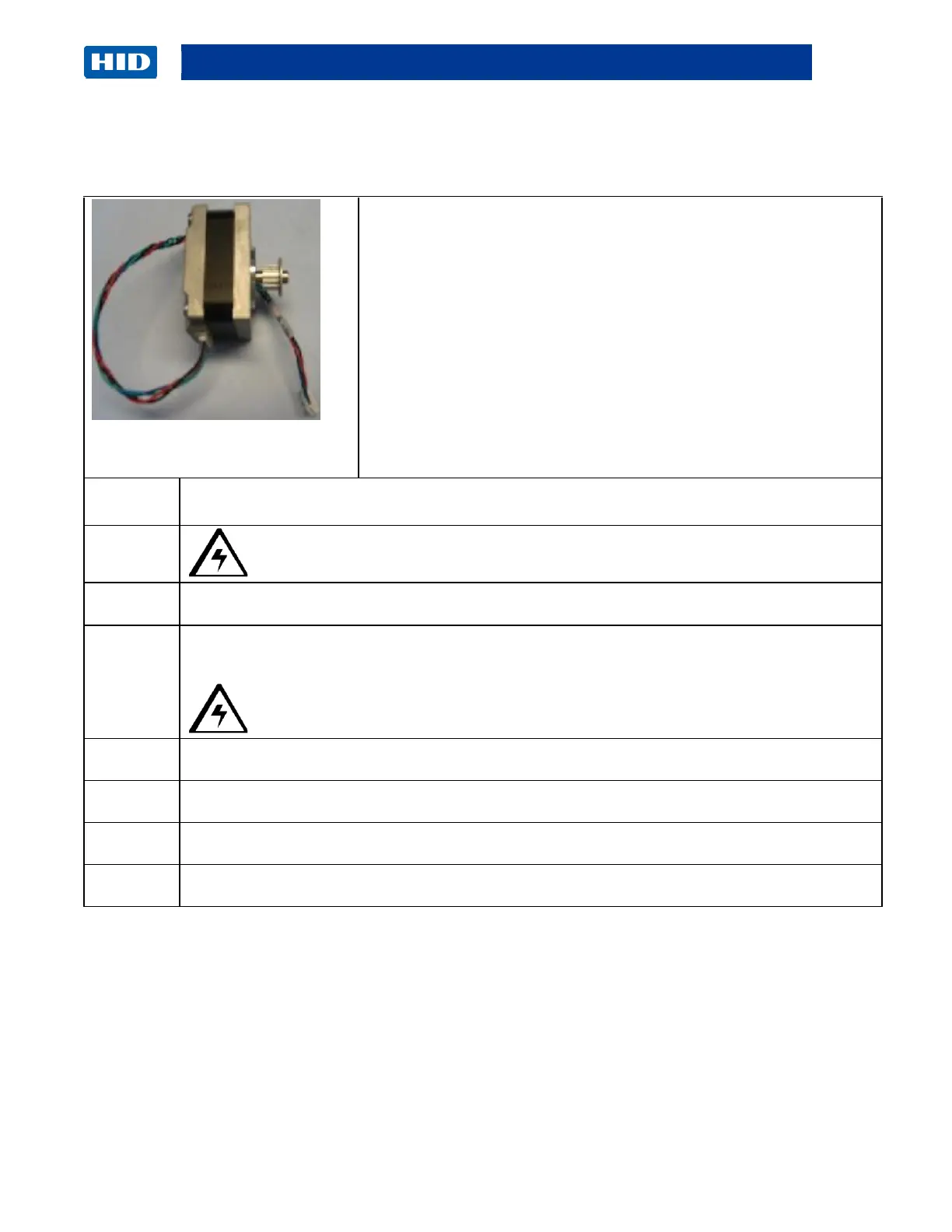

Remove/ Replace the Card Feed Motor (D900524)
Tools needed: Philip screwdriver
Estimated Time: 30 minutes
Preparation: Remove Rear/Top Covers.
Remove the Front Panel
Remove the Output Cover.
.
Important: This procedure can only be performed by authorized
service personnel.
Step
Procedure
1
Caution: Turn OFF the Printer and unplug the power cord from the Printer.
2
Disconnect the cable (D900251) from the bottom of the Stepper Drive Motor.
3
Remove the Main Board by pulling from the four (4) corners out. (Note: No screws hold
the Board. Four (4) pressure tabs hold the Board.)
Caution: Be careful not to break the Board.
4
Remove the two (2) screws that hold the Motor base to the Frame.
5
Replace the Motor/ Bracket.
6
Reconnect the wires at the Motor (bottom).
7
Reverse the instructions to re-assemble.
