Fargo HDP8500 - Remove;Replace the Output Roller Assembly (D910404)

HDP8500 Service Manual, PLT-01583, 1.1
© 2013 HID Global Corporation/ASSA ABLOY AB. All rights reserved.
88

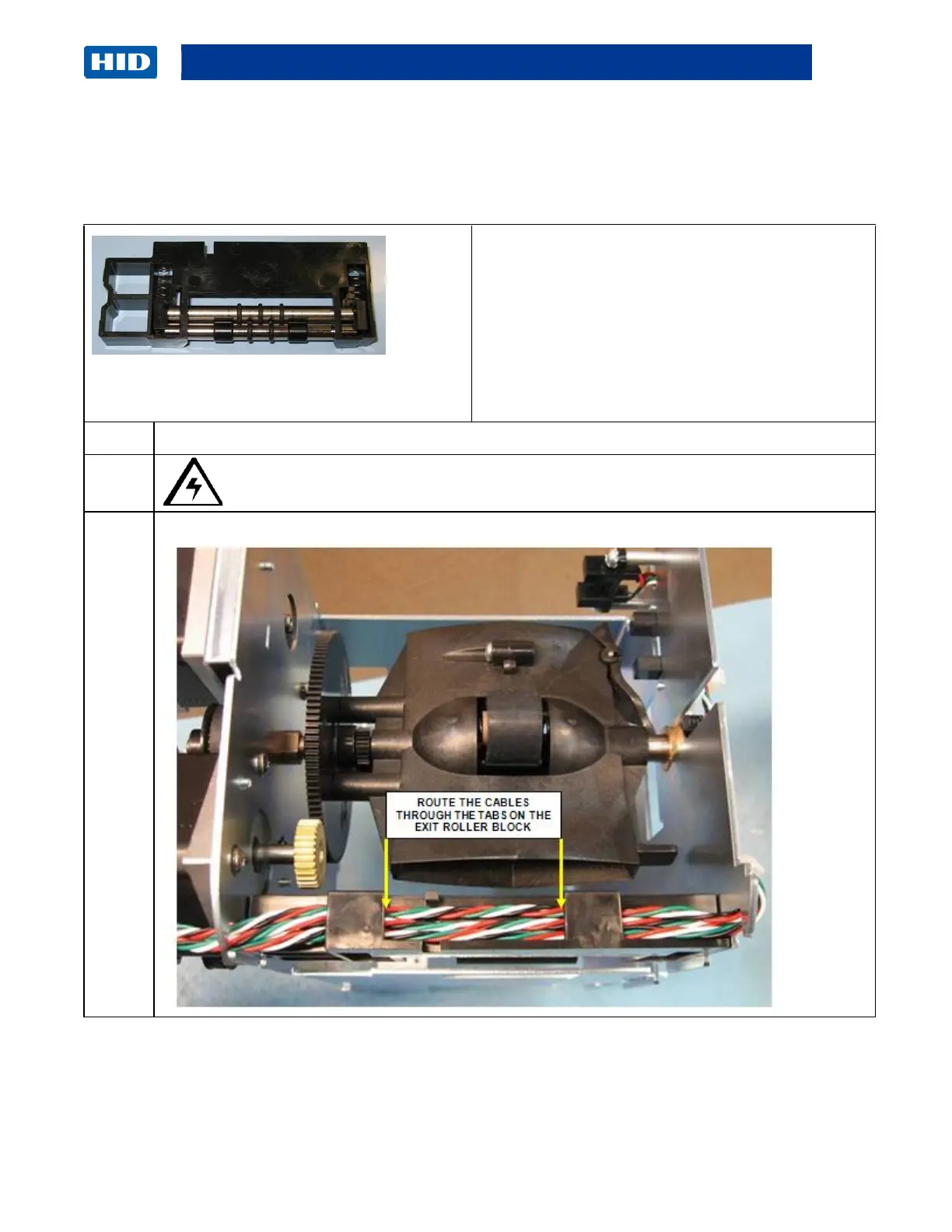

Remove/Replace the Output Roller Assembly (D910404)
Tools needed:
Estimated Time: 30 minutes
Preparation: Remove Rear/Top Covers.
Remove the Front Panel
Remove the Output Cover.
Important: This procedure can only be
performed by authorized service personnel.
Step
Procedure
1
Caution: Turn OFF the Printer and unplug the power cord from the Printer.
2
Unwind the Flipper Sensor Bundle Cable from the top of the Output Roller Assembly.
