Fargo HDP8500 - Remove; Replace the Flipper Motor (D900523)

HDP8500 Service Manual, PLT-01583, 1.1
© 2013 HID Global Corporation/ASSA ABLOY AB. All rights reserved.
93

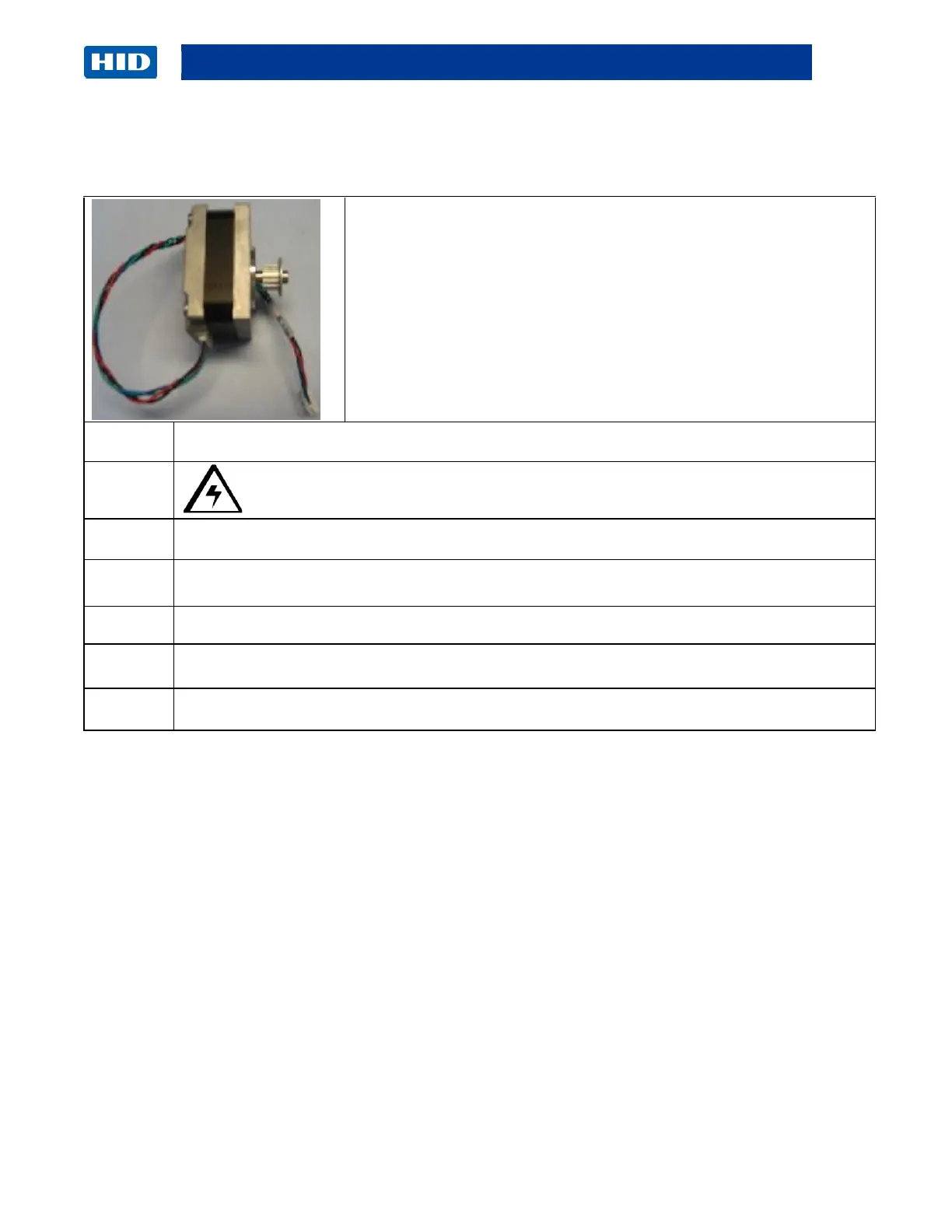

Remove/ Replace the Flipper Motor (D900523)
Tools needed: T10 Torx Driver
Estimated Time: 30 minutes
Preparation: Remove Rear/Top Covers.
Remove the Front Panel
Remove the Output Cover.
Important: This procedure can only be performed by authorized
service personnel.
Step
Procedure
1
Caution: Turn OFF the Printer and unplug the power cord from the Printer.
2
Disconnect the cable (D900251) from the top of the Stepper Motor.
3
Remove three (3) screws from the Motor to the Frame.
4
Replace the Motor.
5
Connect the cable to Motor (top).
6
Reverse the instructions to re-assemble.
