Fargo HDP8500 - Remove;Replace the Ribbon Sensor (D910556)

HDP8500 Service Manual, PLT-01583, 1.1
© 2013 HID Global Corporation/ASSA ABLOY AB. All rights reserved.
75

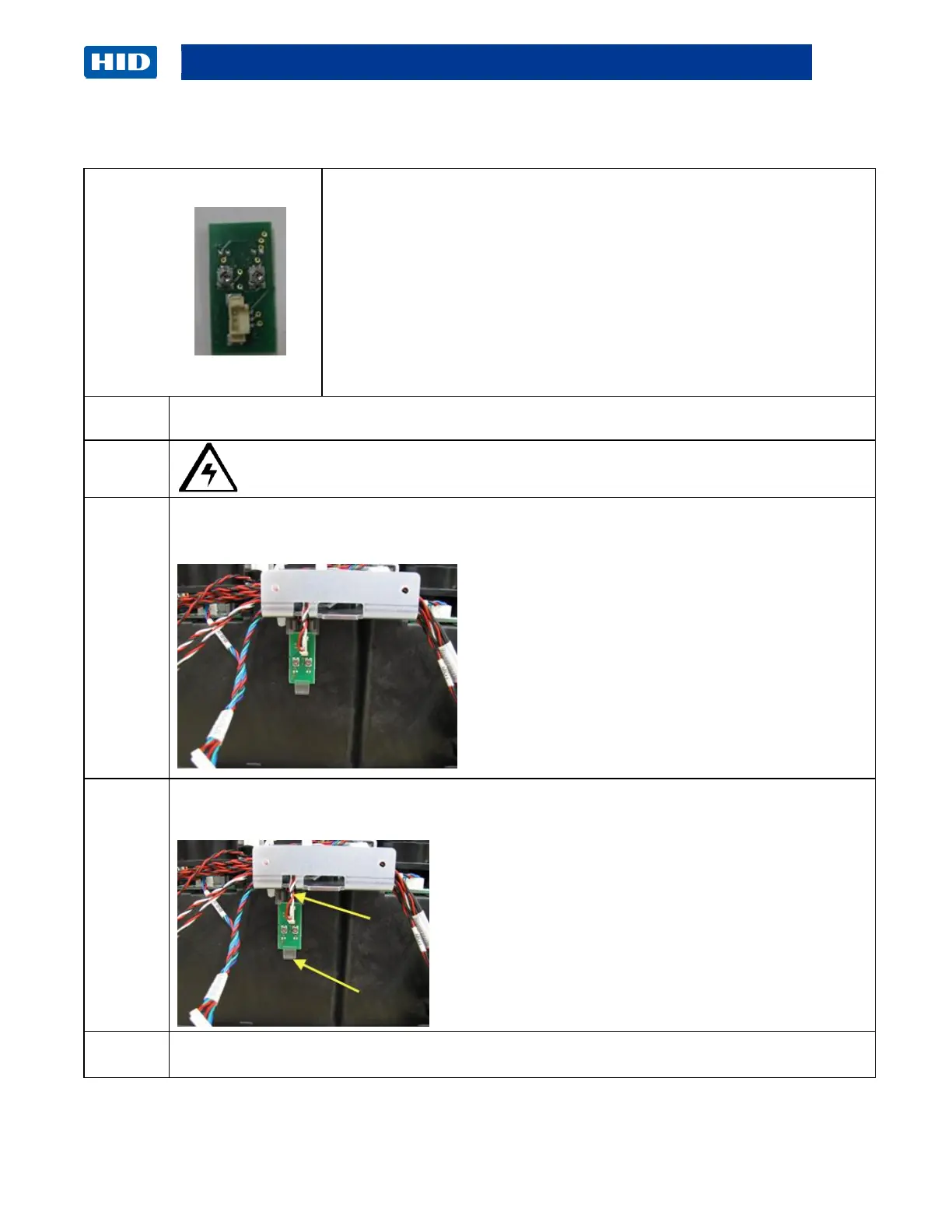

Remove/Replace the Ribbon Sensor (D910556)
Tools needed: T10 Torx Driver
Estimated Time: 30 minutes
Preparation: Remove the Covers.
Remove the Card Path
Remove the Fan Box Bracket
Remove the Main Chassis
Important: This procedure can only be performed by authorized
service personnel.
Step
Procedure
1
Caution: Turn OFF the Printer and unplug the power cord from the Printer.
2
Remove the Main Chassis to access the Ribbon Sensor located on the bottom of the
chassis frame.
3
Disconnect the wire from the PCB.
Unclip the PCB from the plastic tabs.
4
Reassembly all parts using reverse assembly process.
