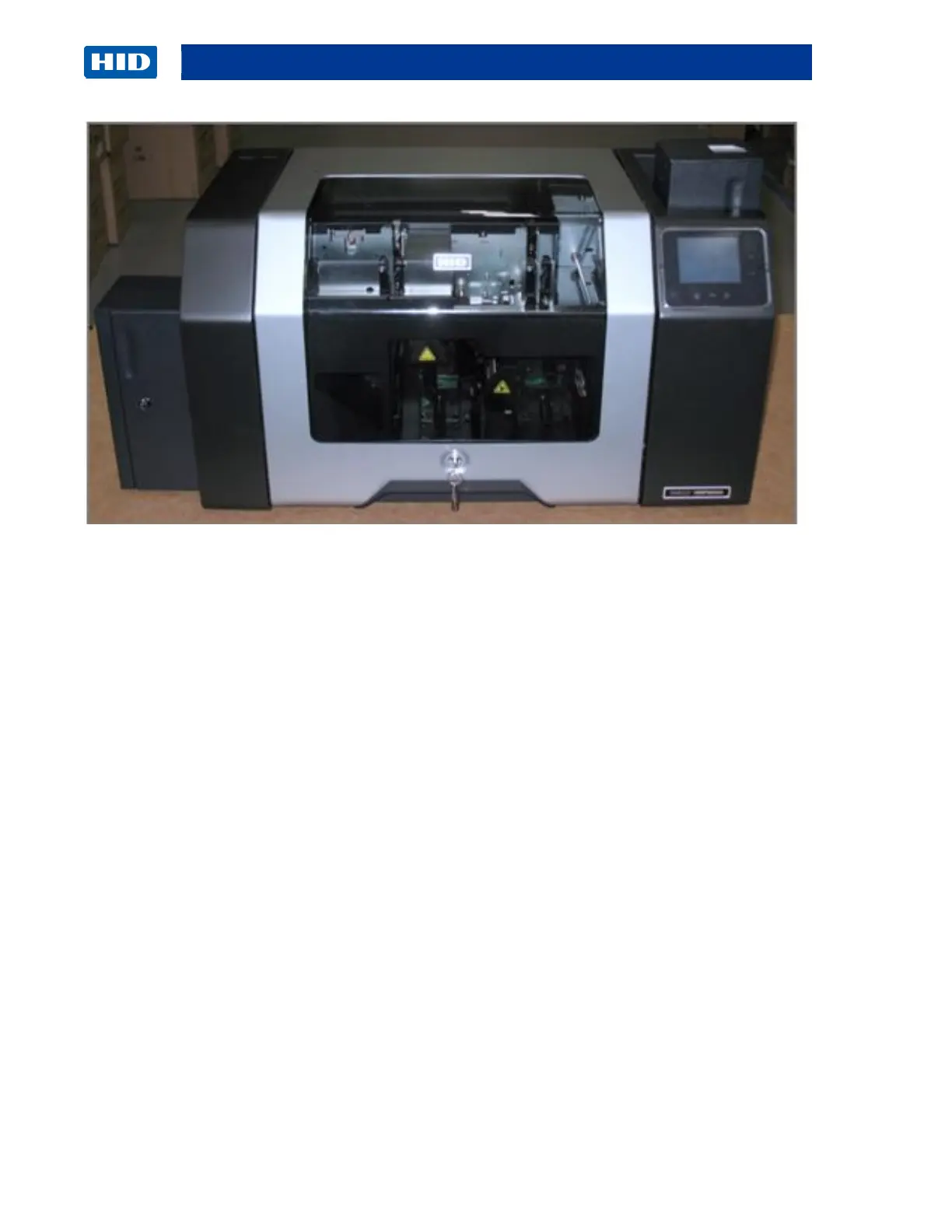

Reviewing the HDP8500 Covers
The Covers must be removed in this sequence (order) to avoid damage to these parts.
Reverse order to re-assemble.
1. Top/Rear Cover D940089
2. Front Panel Cover D940201-01
3. Input Cover D940092-02
4. Output Cover D940199-02
