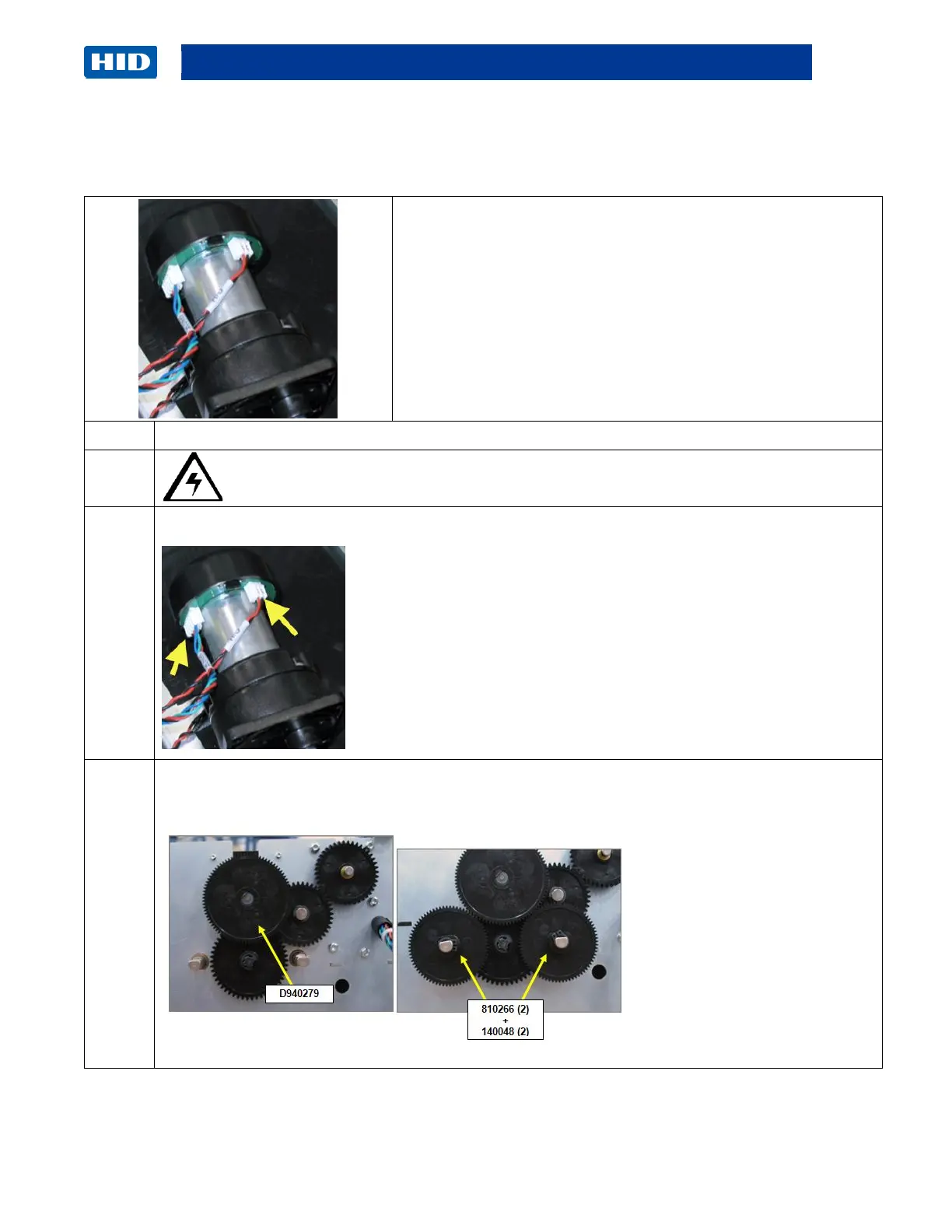

Card Path- Gear Motor (D900484-01)
Tools needed: T10 Torx Driver
Estimated Time: 30 minutes
Preparation: Remove Rear/Top Covers.
Remove the Fan Box/ Bracket
Remove the Card Path
Important: This procedure can only be performed by
authorized service personnel.
Step
Procedure
1
Caution: Turn OFF the Printer and unplug the power cord from the Printer.
2
Disconnenct the 2 wire cables.
3
Remove the Gears (D940279 & 810266) from the outer Sidplate to access the Motor Shaft
Gear. (D940252)
