HDP8500 Service Manual, PLT-01583, 1.1
© 2013 HID Global Corporation/ASSA ABLOY AB. All rights reserved.
58
Step
Procedure
4

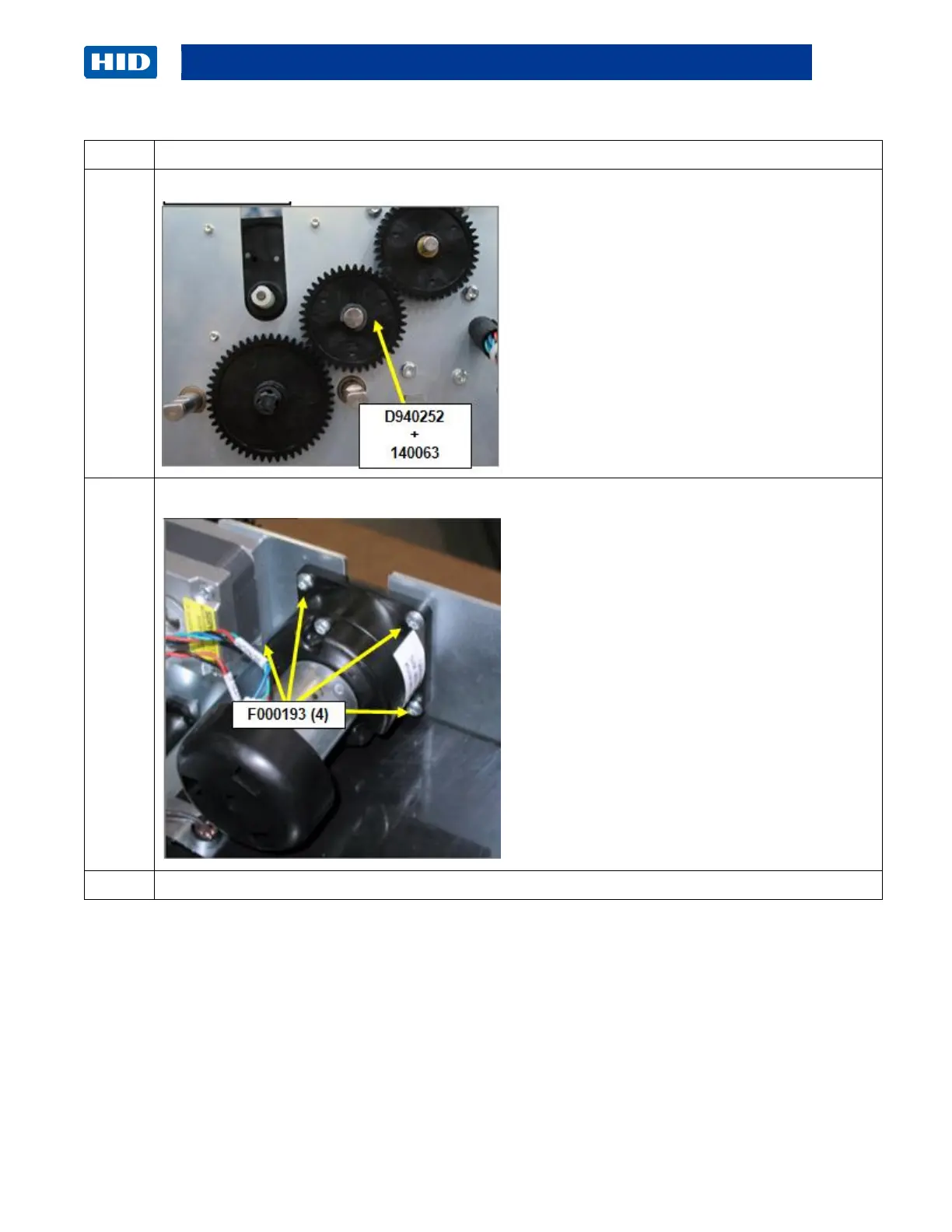

Remove the Gear ( D940252) and E-Clip (140063) from the motor post.
5
Remove 4 screws ( F000193) to release the motor from the frame. Lift Motor up and out.
6
Reverse the instructions to re-assemble.
