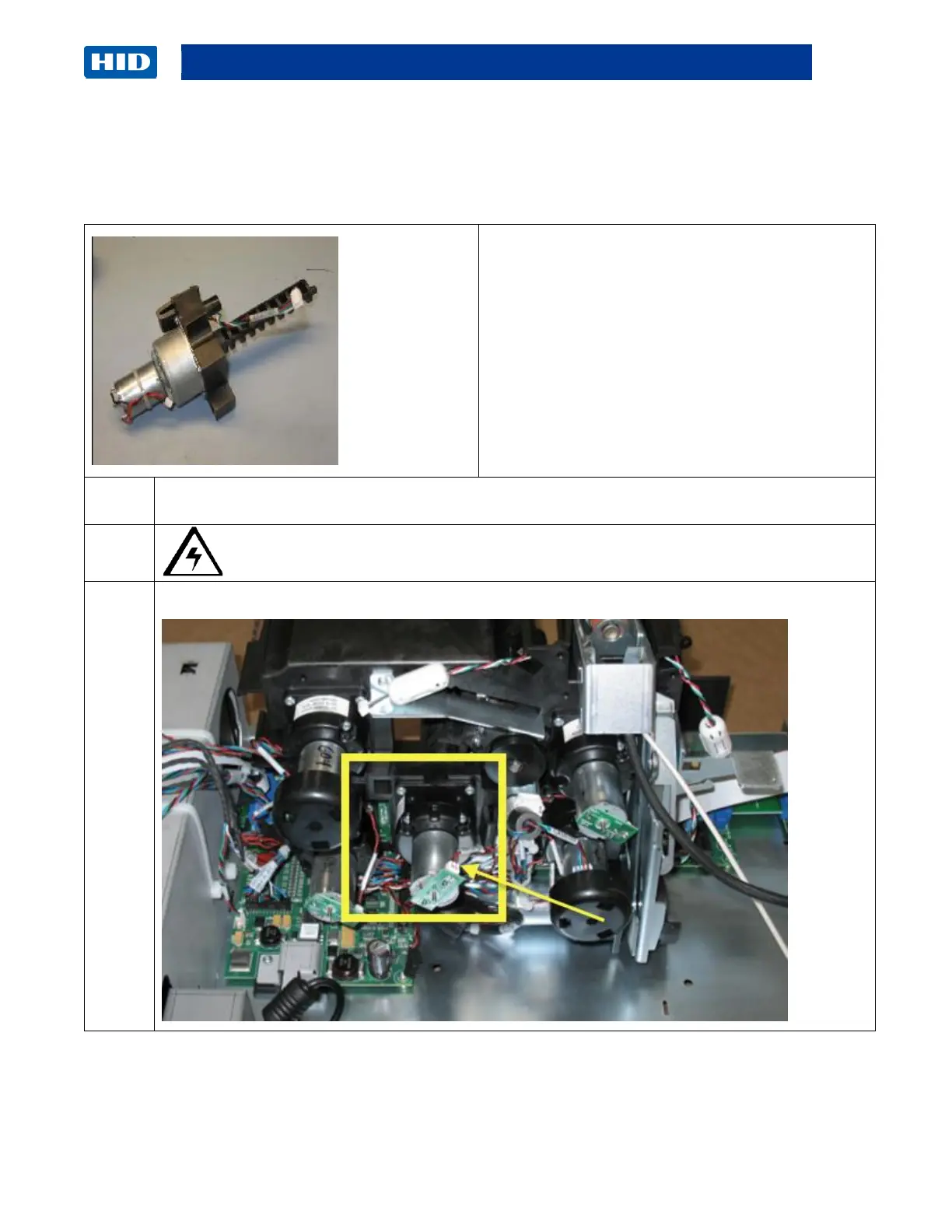

Fargo HDP8500 - Remove;Replace the Headlift Motor (D910052) and Headlift Sensor (D910216)

HDP8500 Service Manual, PLT-01583, 1.1
© 2013 HID Global Corporation/ASSA ABLOY AB. All rights reserved.
61
Remove/Replace the Headlift Motor (D910052) and Headlift Sensor
(D910216)
Tools needed: T10 Torx Driver
Estimated Time: 30 minutes
Preparation: Remove the Rear/Top Covers.
Remove the Fan Box/Bracket Assembly
Important: This procedure can only be
performed by authorized service personnel.
Suggestion: Lay the printer on the front side for
ease of accessing the motors.
Step
Procedure
1
Caution: Turn OFF the Printer and unplug the power cord from the Printer.
2
Detach the Sensor wire (D910216) from the top of the Headlift Motor (D910052).
