Fargo HDP8500 - Remove;Replace the Output Cover (D940199-02)

HDP8500 Service Manual, PLT-01583, 1.1
© 2013 HID Global Corporation/ASSA ABLOY AB. All rights reserved.
18
Remove/Replace the Output Cover (D940199-02)
Tools needed: T10 Torx Driver, Philip driver
Estimated Time: 10 minutes
Important: This procedure can only be performed by authorized service
personnel.
Step
Procedure

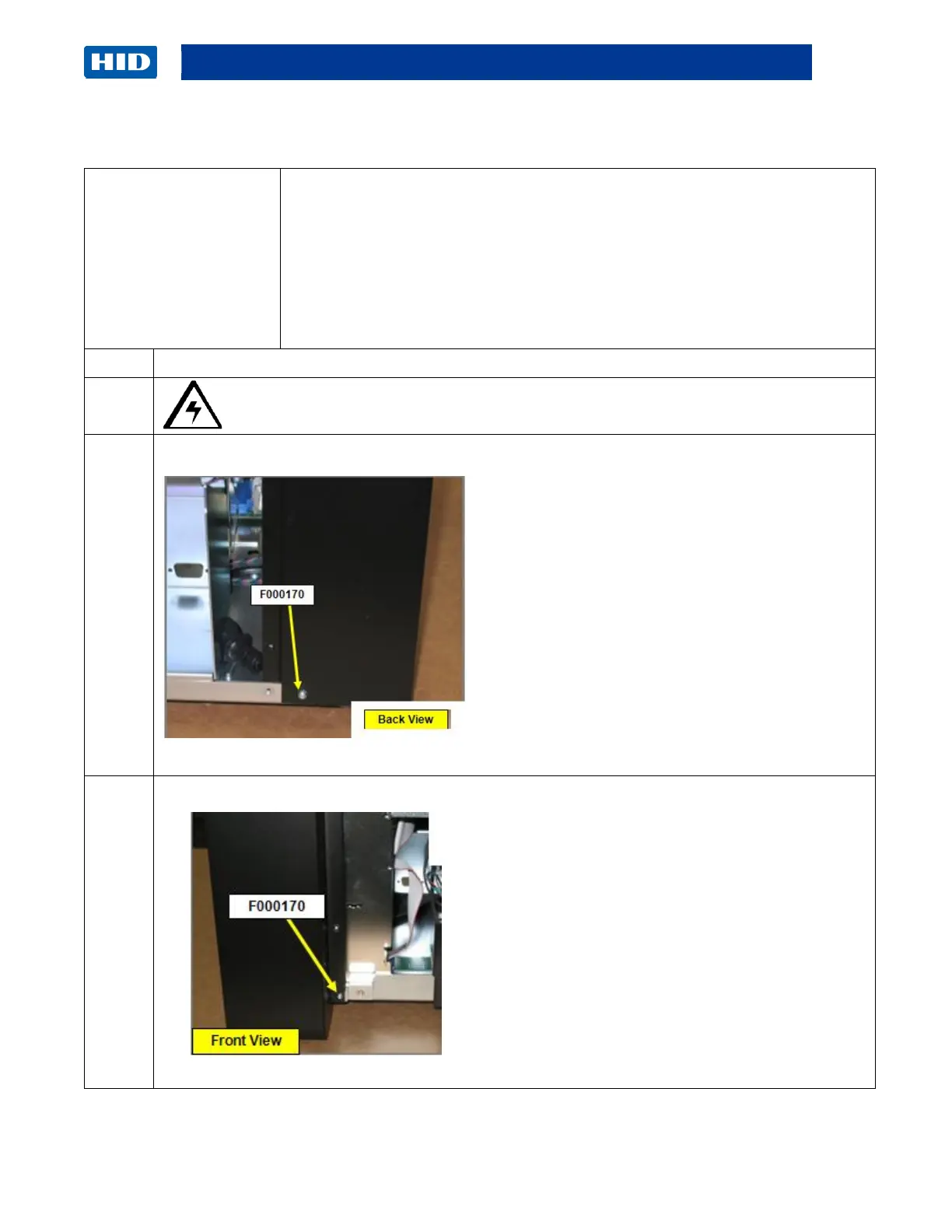

1
Caution: Power off the Printer by unplugging the power cord from the Printer.
2
Remove (1) screw (F000170) from the bottom BACK cover. (T10 driver)
* When replacing the Output Cover do not tighten this screw at this step.
3
Remove (1) screw (F000170) from the bottom FRONT cover. (T10 driver)
* When replacing the Output Cover do not tighten this screw at this step.
