HDP8500 Service Manual, PLT-01583, 1.1
© 2013 HID Global Corporation/ASSA ABLOY AB. All rights reserved.
123

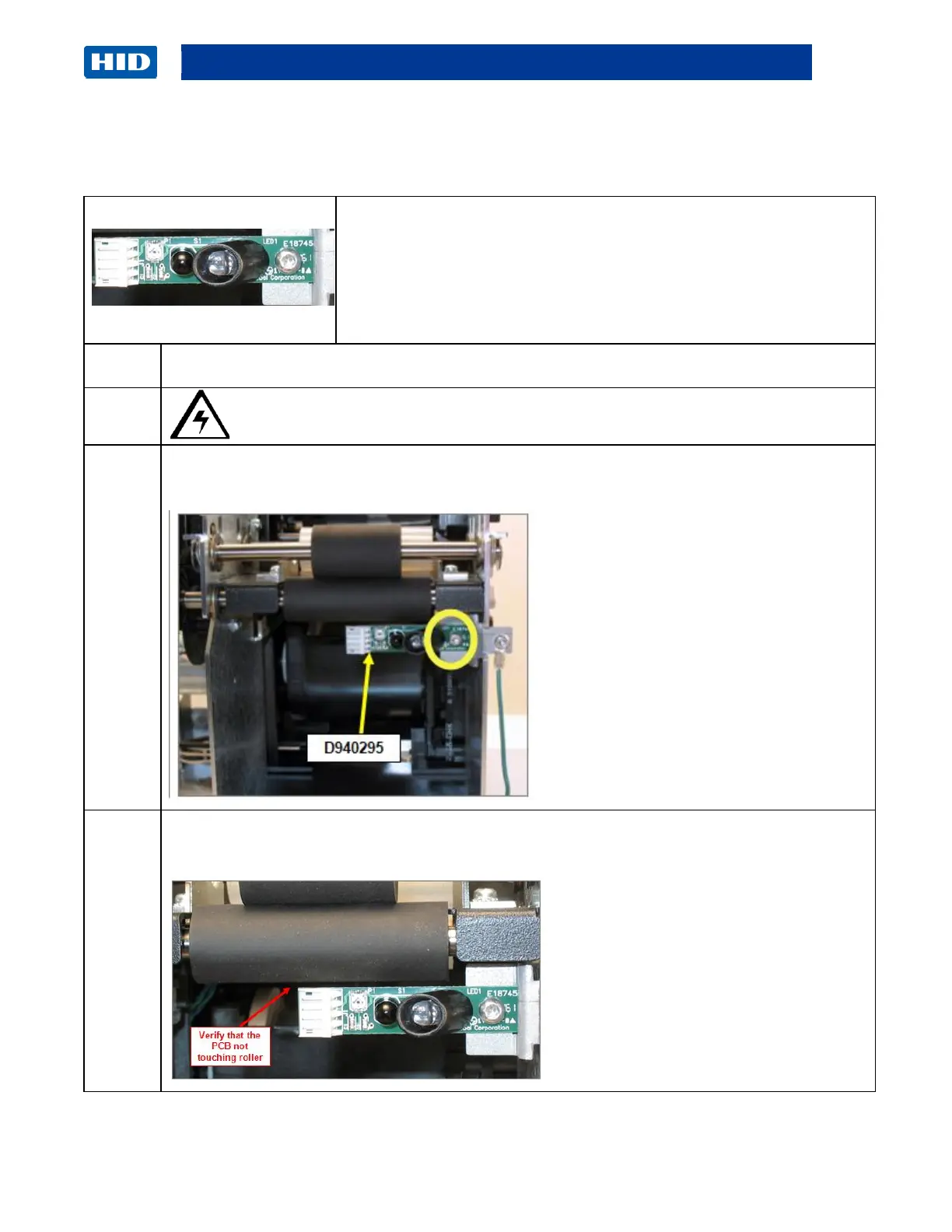

Remove/Replace the Hopper Full Sensor (D940295)
Tools needed: T10 Torx Driver;
Estimated Time: 15 minutes
Preparation: Remove the Covers.
Important: This procedure can only be performed by authorized
service personnel.
Caution: Turn OFF the Printer and unplug the power cord from the Printer.
Remove 1 screw (F000169) that holds the sensor to the frame.
Disconect the wire cable D940344 from J22.
When replacing the sensor, verify it does not touch the roller.
