Fargo HDP8500 - Remove the Print Stepper Motor (D910050)

HDP8500 Service Manual, PLT-01583, 1.1
© 2013 HID Global Corporation/ASSA ABLOY AB. All rights reserved.
64

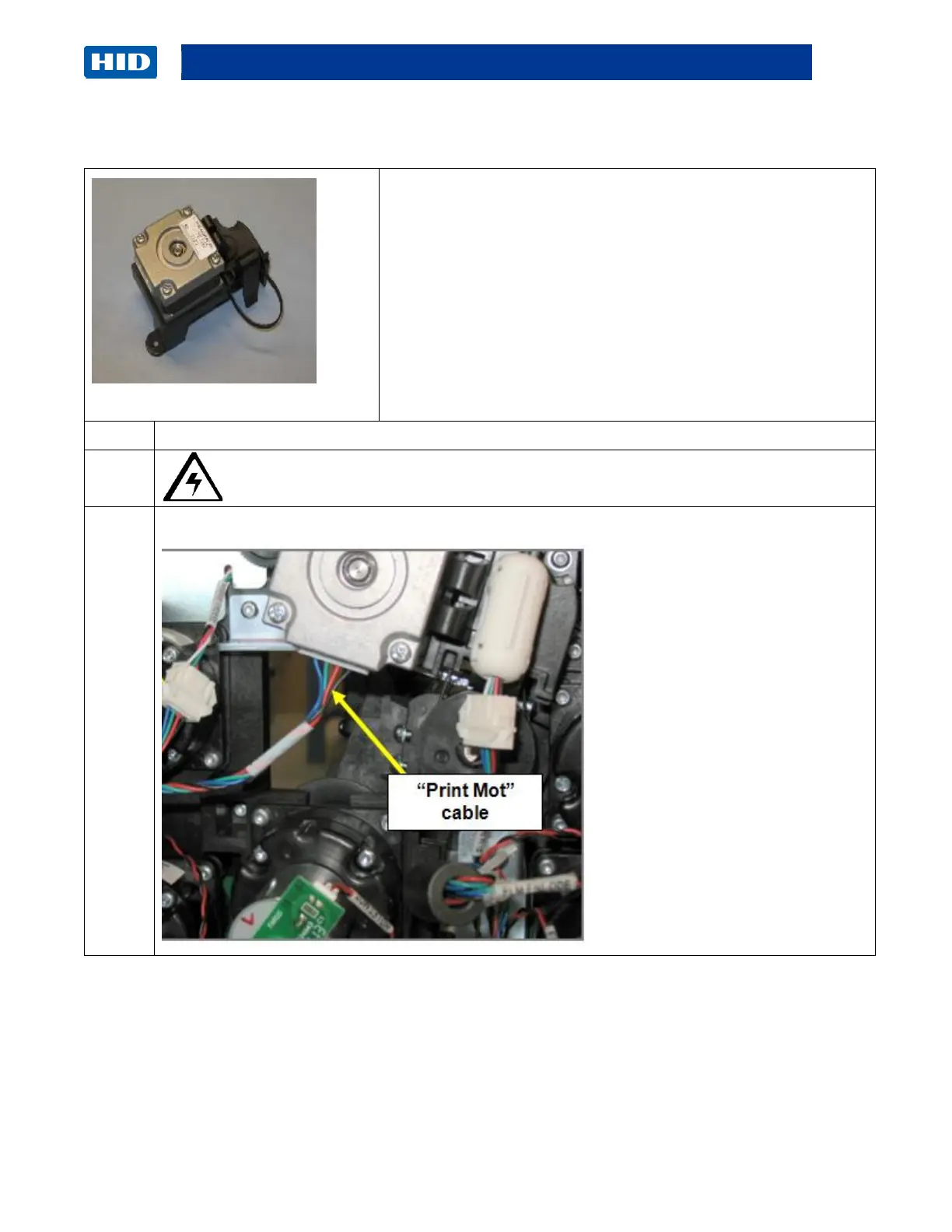

Remove the Print Stepper Motor (D910050)
Tools needed: T10 Torx Driver
Estimated Time: 30 minutes
Preparation: Remove Covers.
Remove the Fan Box/Bracket Assembly
Remove the Card Path.
Suggestion: Lay the printer on the front side for ease of
accessing the motors.
Important: This procedure can only be performed by
authorized service personnel.
Step
Procedure
1
Caution: Turn OFF the Printer and unplug the power cord from the Printer.
2
Detach the Print Motor Cable from the Print Stepper Motor (D910050).
